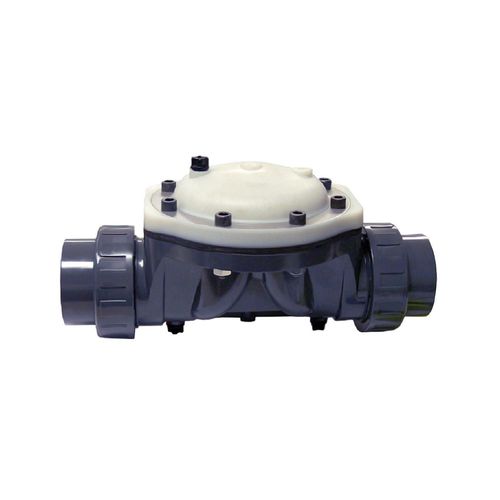

Diaphragm valve UP.71.SF1hydraulicfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulic
- Function
- for control
- Media
- for water
- Body
- female
- Material
- PVC-U
- Number of channels
- 3-way
- Other characteristics
- chemical-resistant
- DN
63 mm, 90 mm
(2.48 in, 3.543 in)- Pressure
8 bar, 10 bar
(116 psi, 145 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 10 °C
(50 °F)
Description
• Closing of the valve by diaphragm.
• 100% factory tested.
• Valve closing is produced when water flows to the control chamber.
• The opening is done when the fluid of the control chamber is released through a 3-way ball valve or through a solenoid.
• Good mechanical strength.
• Resistance to many inorganic chemicals.
• Excellent flow characteristics.
