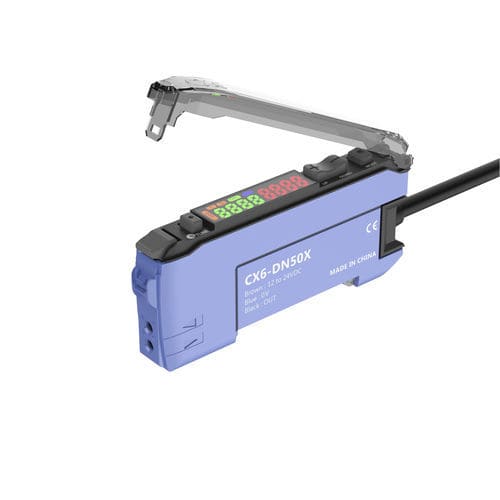

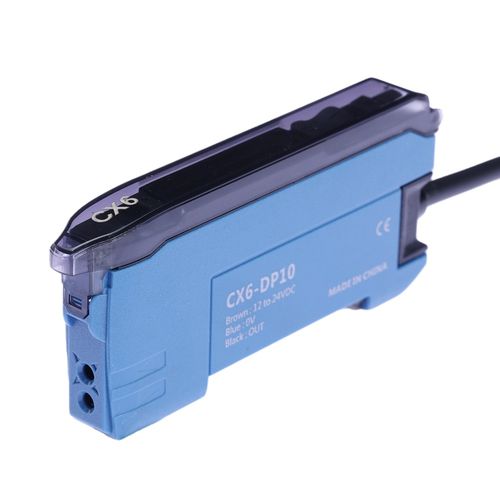

Light optical sensor CX6-DN50X

for detectionDIN railfiber optic

1. **Naming Rule**
Detection principle: High-precision digital fiber optic amplifier sensor, compatible with fiber probes.
Connection: 2m PVC molded cable. 3 selectable response speed modes.
‑ NPN: CX6‑DN50X; PNP: CX6‑DP50X
2. **Available Part Numbers**
CX6‑DN50X, CX6‑DP50X
3. **Detection Principle**
High-precision digital fiber optic amplifier, receives light signal transmitted via fiber optic cable. Supports through‑beam and diffuse fiber probes. Built‑in light amount auto‑compensation to suppress signal drift caused by fiber aging and dust contamination. Featured with emission power setting function, ideal for tiny object detection, subtle contrast inspection and precision production line applications.
4. **Sensing Range**
Sensing distance ranges from 1 mm to 2 m, depending on the matched CX2‑series fiber cables supplied by our company, which are available for online purchase.
Light source: Red 4‑element LED (625 nm).
Adjustment: One‑touch button setting, light amount auto‑compensation, light level adjustment, percentage adjustment, emission power setting.
Indicator: Dual 7‑segment LED digital display, with red main readout and green auxiliary indicator.
Response time & frequency: 200μs/2.5kHz, 1ms/500Hz, 16ms/31Hz.
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100mA (residual voltage ≤3V). Load power supply ≤30V.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Power consumption: ≤720mW. Current consumption ≤30mA @24V / ≤60mA @12V.
6. **Key Features**
‑ Compact high-precision digital fiber amplifier housing; Housing material: PC, Cable:PVC.
‑ Mounting: DIN‑rail mounting or surface‑mounted via screw holes.
‑ 3 optional response speed modes.
‑ Functions: Data storage, key lock, light amount reset, light amount auto‑compensation, 3 delay output modes, light level adjustment, percentage adjustment, differentiation function, display inversion, emission power setting.
‑ Protection: Power supply reverse connection protection, output short‑circuit protection, output reverse connection protection, power surge protection.
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Insulation resistance: 20MΩ
‑ Vibration resistance:10‑55Hz, double amplitude 0.7mm or 50m/s², X/Y/Z axis 1.5 h
‑ Shock resistance:150 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑10~+55 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating / Storage 25‑85%RH(non‑condensation)
‑ Ambient light resistance: Incandescent lamp:2000lx, Sunlight:10000lx
‑ Protection grade: IP50
‑ Cable: molded PVC cable, length 2 m
‑ Weight: approx.65 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
>
> Accessories: instruction manual, certificate of compliance, optional fiber probes.
