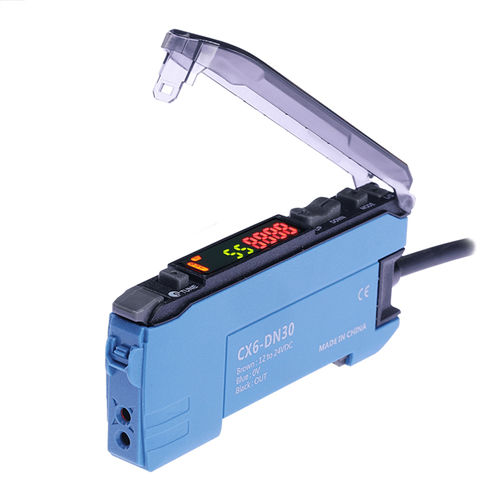

Light optical sensor CX6-DN30for safety edgesDIN railfiber optic
Add to favorites
Compare this product
Characteristics
- Measured physical value
- light
- Applications
- for safety edges
- Mounting
- DIN rail
- Other characteristics
- fiber optic
Description
1. **Naming Rule**
Detection principle: Digital fiber optic amplifier sensor, compatible with fiber probes.
Connection: 2m PVC molded cable. 4 selectable response speed modes.
‑ NPN: CX6‑DN30; PNP: CX6‑DP30
2. **Available Part Numbers**
CX6‑DN30, CX6‑DP30
3. **Detection Principle**
Digital fiber optic amplifier, receives light signal transmitted via fiber optic cable. Supports through‑beam and diffuse fiber probes. Built‑in light amount auto‑compensation to suppress signal drift caused by fiber aging and dust contamination. Suitable for general‑speed detection, logistics counting and continuous production line applications.
4. **Sensing Range**
Sensing distance ranges from 1 mm to 2 m, depending on the matched CX2‑series fiber cables supplied by our company, which are available for online purchase.
Light source: Red LED.
Adjustment: One‑touch button setting, light amount auto‑compensation, light level adjustment, percentage adjustment.
Indicator: Red digital display; Green stable indicator (ON under stable detection).
Response time & frequency: 80μs/6.25kHz, 500μs/1kHz, 2ms/250Hz, 32ms/15Hz.
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100mA (residual voltage ≤3V). Load power supply ≤30V.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Power consumption: ≤720mW. Current consumption ≤30mA @24V / ≤60mA @12V.
6. **Key Features**
‑ Compact digital fiber amplifier housing; Housing material: PC, Cable:PVC.
‑ Mounting: DIN‑rail mounting or surface‑mounted via screw holes.
‑ 4 optional response speed modes.
‑ Functions: Data storage, key lock, light amount reset, light amount auto‑compensation, 3 delay output modes, light level adjustment, percentage adjustment, differentiation function, display inversion.
‑ Protection: Power supply reverse connection protection, output short‑circuit protection, output reverse connection protection, power surge protection.
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Insulation resistance: 20MΩ
‑ Vibration resistance:10‑55Hz, double amplitude 0.7mm or 50m/s², X/Y/Z axis 1.5 h
‑ Shock resistance:150 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑10~+55 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating / Storage 25‑85%RH(non‑condensation)
‑ Ambient light resistance: Incandescent lamp:2000lx, Sunlight:10000lx
‑ Protection grade: IP50
‑ Cable: molded PVC cable, length 2 m
‑ Weight: approx.65 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
>
> Accessories: instruction manual, certificate of compliance, optional fiber probes.1. **Naming Rule**
Detection principle: Digital fiber optic amplifier sensor, compatible with fiber probes.
Connection: 2m PVC molded cable. 4 selectable response speed modes.
‑ NPN: CX6‑DN30; PNP: CX6‑DP30
2. **Available Part Numbers**
CX6‑DN30, CX6‑DP30
3. **Detection Principle**
Digital fiber optic amplifier, receives light signal transmitted via fiber optic cable. Supports through‑beam and diffuse fiber probes. Built‑in light amount auto‑compensation to suppress signal drift caused by fiber aging and dust contamination. Suitable for general‑speed detection, logistics counting and continuous production line applications.
4. **Sensing Range**
Sensing distance ranges from 1 mm to 2 m, depending on the matched CX2‑series fiber cables supplied by our company, which are available for online purchase.
Light source: Red LED.
Adjustment: One‑touch button setting, light amount auto‑compensation, light level adjustment, percentage adjustment.
Indicator: Red digital display; Green stable indicator (ON under stable detection).
Response time & frequency: 80μs/6.25kHz, 500μs/1kHz, 2ms/250Hz, 32ms/15Hz.
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100mA (residual voltage ≤3V). Load power supply ≤30V.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Power consumption: ≤720mW. Current consumption ≤30mA @24V / ≤60mA @12V.
6. **Key Features**
‑ Compact digital fiber amplifier housing; Housing material: PC, Cable:PVC.
‑ Mounting: DIN‑rail mounting or surface‑mounted via screw holes.
‑ 4 optional response speed modes.
‑ Functions: Data storage, key lock, light amount reset, light amount auto‑compensation, 3 delay output modes, light level adjustment, percentage adjustment, differentiation function, display inversion.
‑ Protection: Power supply reverse connection protection, output short‑circuit protection, output reverse connection protection, power surge protection.
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Insulation resistance: 20MΩ
‑ Vibration resistance:10‑55Hz, double amplitude 0.7mm or 50m/s², X/Y/Z axis 1.5 h
‑ Shock resistance:150 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑10~+55 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating / Storage 25‑85%RH(non‑condensation)
‑ Ambient light resistance: Incandescent lamp:2000lx, Sunlight:10000lx
‑ Protection grade: IP50
‑ Cable: molded PVC cable, length 2 m
‑ Weight: approx.65 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
> Accessories: instruction manual, certificate of compliance, optional fiber probes.
Detection principle: Digital fiber optic amplifier sensor, compatible with fiber probes.
Connection: 2m PVC molded cable. 4 selectable response speed modes.
‑ NPN: CX6‑DN30; PNP: CX6‑DP30
2. **Available Part Numbers**
CX6‑DN30, CX6‑DP30
3. **Detection Principle**
Digital fiber optic amplifier, receives light signal transmitted via fiber optic cable. Supports through‑beam and diffuse fiber probes. Built‑in light amount auto‑compensation to suppress signal drift caused by fiber aging and dust contamination. Suitable for general‑speed detection, logistics counting and continuous production line applications.
4. **Sensing Range**
Sensing distance ranges from 1 mm to 2 m, depending on the matched CX2‑series fiber cables supplied by our company, which are available for online purchase.
Light source: Red LED.
Adjustment: One‑touch button setting, light amount auto‑compensation, light level adjustment, percentage adjustment.
Indicator: Red digital display; Green stable indicator (ON under stable detection).
Response time & frequency: 80μs/6.25kHz, 500μs/1kHz, 2ms/250Hz, 32ms/15Hz.
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100mA (residual voltage ≤3V). Load power supply ≤30V.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Power consumption: ≤720mW. Current consumption ≤30mA @24V / ≤60mA @12V.
6. **Key Features**
‑ Compact digital fiber amplifier housing; Housing material: PC, Cable:PVC.
‑ Mounting: DIN‑rail mounting or surface‑mounted via screw holes.
‑ 4 optional response speed modes.
‑ Functions: Data storage, key lock, light amount reset, light amount auto‑compensation, 3 delay output modes, light level adjustment, percentage adjustment, differentiation function, display inversion.
‑ Protection: Power supply reverse connection protection, output short‑circuit protection, output reverse connection protection, power surge protection.
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Insulation resistance: 20MΩ
‑ Vibration resistance:10‑55Hz, double amplitude 0.7mm or 50m/s², X/Y/Z axis 1.5 h
‑ Shock resistance:150 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑10~+55 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating / Storage 25‑85%RH(non‑condensation)
‑ Ambient light resistance: Incandescent lamp:2000lx, Sunlight:10000lx
‑ Protection grade: IP50
‑ Cable: molded PVC cable, length 2 m
‑ Weight: approx.65 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
>
> Accessories: instruction manual, certificate of compliance, optional fiber probes.1. **Naming Rule**
Detection principle: Digital fiber optic amplifier sensor, compatible with fiber probes.
Connection: 2m PVC molded cable. 4 selectable response speed modes.
‑ NPN: CX6‑DN30; PNP: CX6‑DP30
2. **Available Part Numbers**
CX6‑DN30, CX6‑DP30
3. **Detection Principle**
Digital fiber optic amplifier, receives light signal transmitted via fiber optic cable. Supports through‑beam and diffuse fiber probes. Built‑in light amount auto‑compensation to suppress signal drift caused by fiber aging and dust contamination. Suitable for general‑speed detection, logistics counting and continuous production line applications.
4. **Sensing Range**
Sensing distance ranges from 1 mm to 2 m, depending on the matched CX2‑series fiber cables supplied by our company, which are available for online purchase.
Light source: Red LED.
Adjustment: One‑touch button setting, light amount auto‑compensation, light level adjustment, percentage adjustment.
Indicator: Red digital display; Green stable indicator (ON under stable detection).
Response time & frequency: 80μs/6.25kHz, 500μs/1kHz, 2ms/250Hz, 32ms/15Hz.
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100mA (residual voltage ≤3V). Load power supply ≤30V.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Power consumption: ≤720mW. Current consumption ≤30mA @24V / ≤60mA @12V.
6. **Key Features**
‑ Compact digital fiber amplifier housing; Housing material: PC, Cable:PVC.
‑ Mounting: DIN‑rail mounting or surface‑mounted via screw holes.
‑ 4 optional response speed modes.
‑ Functions: Data storage, key lock, light amount reset, light amount auto‑compensation, 3 delay output modes, light level adjustment, percentage adjustment, differentiation function, display inversion.
‑ Protection: Power supply reverse connection protection, output short‑circuit protection, output reverse connection protection, power surge protection.
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Insulation resistance: 20MΩ
‑ Vibration resistance:10‑55Hz, double amplitude 0.7mm or 50m/s², X/Y/Z axis 1.5 h
‑ Shock resistance:150 m/s², X/Y/Z axis 3 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑10~+55 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating / Storage 25‑85%RH(non‑condensation)
‑ Ambient light resistance: Incandescent lamp:2000lx, Sunlight:10000lx
‑ Protection grade: IP50
‑ Cable: molded PVC cable, length 2 m
‑ Weight: approx.65 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.
> Accessories: instruction manual, certificate of compliance, optional fiber probes.
