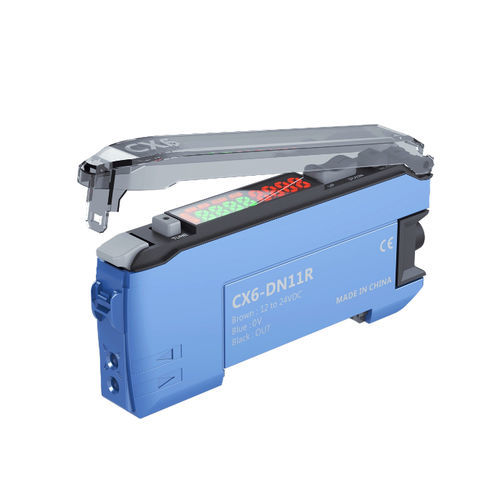

Light optical sensor CX6-DP11Rfor detectioncompactfiber optic
Add to favorites
Compare this product
Characteristics
- Measured physical value
- light
- Applications
- for detection
- Other characteristics
- compact, fiber optic, IP code
Description
Product
Main characteristics
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories & drawings
Features / Specification highlights
- Series: CX6 series fiber-optic sensors
- Model: CX6-DP11R
Main characteristics
- Type: RS485 model
- Output: RS485 communication output
- Supply voltage: DC 12–24 V
- Power supply: DC three-wire
- Protection rating: IP50
- Connection: moulded cable
Technical specifications
- Cable length: 2 m
- Response frequency: 16500 Hz / 2500 Hz / 625 Hz / 27 Hz
- Response time: 30 μs / 200 μs / 800 μs / 18 ms
- Light source: red light
- Functions: one-touch setting, threshold adjustment, initialization, data save/load, key lock, NO/NC switching, zeroing light amount, four detection speeds, automatic light compensation, three timer functions, light-level adjustment, percentage adjustment, differentiation function, digital display toggle, display inversion, power-saving
- Response modes: ultra-high speed / high speed / standard / high-precision
- Accessories: manual, certificate
- Materials: housing: PC; cable: PVC
Mechanical / Electrical parameters
- Output: RS485 communication output
- Supply voltage: DC 12–24 V
- Power supply: DC three-wire
- Protection rating: IP50
- Signal type: switching
- Operating mode: Light ON / Dark ON
- Current consumption: ≤30 mA
- Protection circuits: reverse power protection, output short-circuit protection, output reverse-connection protection, surge protection
- Power consumption: ≤720 mW (at 24 V: current ≤30 mA; at 12 V: current ≤60 mA)
- Insulation resistance: ≥20 MΩ
- Shock resistance: 150 m/s², 3 shocks in X, Y, Z directions
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts vs housing)
- Vibration resistance: 10–50 Hz double amplitude 0.7 mm or 50 m/s², X/Y/Z 1.5 h
- Weight: approx. 65 g
Operating environment
- Operating/storage humidity: 25–85% RH (no freezing, no condensation)
- Ambient illumination: ≤10000 lx
Accessories & drawings
- Included: manual, certificate
- Available: control output diagram, dimensional drawings (see product downloads)
Features / Specification highlights
- High-speed response with selectable frequencies (16500 / 2500 / 625 / 27 Hz)
- Multiple detection speeds and four response modes for high-precision or power-saving operation
- Comprehensive button functions and display options (threshold adjustment, initialization, data access, display inversion)
- Built-in multi-stage protection circuits to enhance operational reliability
- Compact and lightweight (approx. 65 g) with moulded cable for simplified installation
