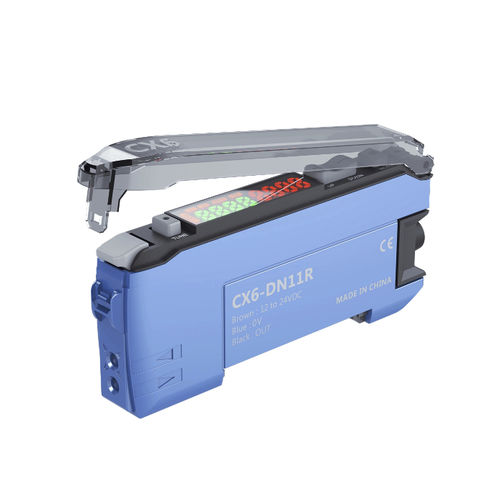

Light optical sensor CX6-DN11R

for detection

1. **Naming Rule**
Fiber amplifier with RS485 communication function; Output:NPN/PNP; Cable length:2m.
‑ NPN output: CX6‑DN11R
‑ PNP output: CX6‑DP11R
2. **Available Part Numbers**
CX6‑DN11RCX6‑DP11R
3. **Detection Principle**
Fiber sensor amplifier, support button one‑click setting for light‑volume & threshold; Built‑in RS485 communication, realize data reading‑writing and parameter configuration by upper computer; Equipped with received‑light automatic compensation for stable detection.
4. **Sensing & Response Performance**
‑ Light source:Red 4‑element LED (625nm)
‑ Response speed optional:Ultra‑high speed 33μs/15kHz; High speed 250μs/2kHz; Standard 1ms/500Hz; High‑precision 16ms/31Hz
‑ Operation mode:Light ON / Dark ON
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current ≤100mA.
Power supply:DC12‑24V(DC10‑30V max), ripple(P‑P) ≤10%.
Power consumption:≤720mW.
6. **Key Features**
‑ Functions:Data storage, key lock, received‑light zero‑reset, light‑volume auto‑compensation, 3‑mode delay output, light‑level adjustment, percentage adjustment, differential function, flip display, window detection
‑ Protection:Reverse‑power‑supply protection, output short‑circuit & reverse‑connection protection, power surge protection
‑ Vibration/shock resistance, Operating temp:‑10~+55℃, IP50
‑ Housing:PC; Cable:PVC 2m; Weight approx.65g
7. **Operation Mode**
Light‑ON (output ON when receiving light) / Dark‑ON (output ON when light blocked). Multiple speed modes selectable.
8. **Output Options**
NPN / PNP open‑collector output; Support RS485 communication.

> Accessories:Instruction manual, certificate of compliance.
