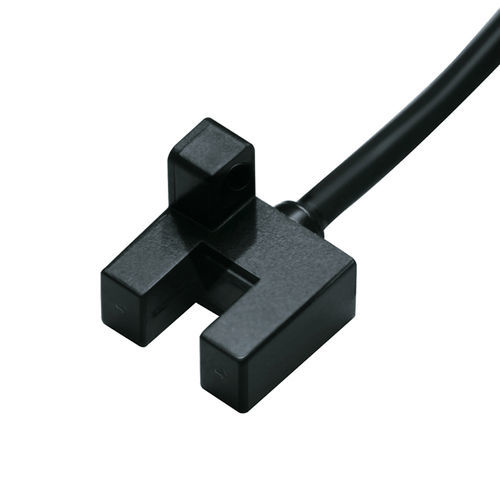

Through-beam photoelectric sensor CPG-TF05N3Rinfraredfor logistics
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Type of beam
- infrared
- Applications
- for logistics
- Maximum range
Min.: 0 mm
(0 in)Max.: 5 mm
(0.2 in)
Description
Series
CPG series photoelectric sensor
Product overview
Key features
Mechanical / Electrical parameters
Materials
Operating environment
Recommended applications
Documents & drawings
Technical specifications (summary)
CPG series photoelectric sensor
Product overview
- Model: CPG-TF05N3R
- Detection distance: 0–5 mm
- Structure: slot-type
- Detection principle: through-beam (opposed)
- Slot width: 5 mm
- Output: NPN NO/NC (switch output)
- Supply voltage: DC 5–24 V
Key features
- Detection face: groove surface
- Cable length: 1 m (molded cable)
- Response frequency: 1000 Hz
- Response time: 500 µs
- Light source: infrared
- Type designation: R
- Accessories: user manual, certificate
- Standard detectable target: opaque objects ≥ 2 × 0.8 mm
Mechanical / Electrical parameters
- Output type: NPN NO/NC
- Wiring: 4-wire DC
- Protection rating: IP50
- Signal type: switch (discrete)
- Operating modes: Light ON / Dark ON
- Current consumption: <35 mA
- Indicator: red LED (lights when receiving)
- Protection: short-circuit protection
- Residual voltage: <0.8 V (load 100 mA); <0.4 V (load 40 mA). For PNP open-collector output DC 5–24 V ≤50 mA, residual voltage <0.8 V (load 50 mA)
- Load current: see residual voltage specifications (depends on output type)
- Shock resistance: 300 m/s², X/Y/Z, 3 shocks each
- Vibration resistance: 20–2000 Hz, amplitude 1.5 mm, X/Y/Z, 2 h
- Weight: approx. 19 g
Materials
- Housing: PBT
- Transparent parts / emitter / receiver: polycarbonate
- Cable: PVC
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating humidity: 5–95 % RH (no condensation, no icing)
- Ambient illumination: <1000 lx
Recommended applications
- 3C electronics assembly and inspection
- Automated parking systems
- Logistics and warehouse automation
Documents & drawings
- User manual (included)
- 3D model (STP) available
Technical specifications (summary)
- Model: CPG-TF05N3R
- Series: CPG series photoelectric sensors
- Detection: 0–5 mm (through-beam)
- Structure: slot, 5 mm slot width
- Output: NPN NO/NC
- Supply voltage: DC 5–24 V
- Current consumption: <35 mA
- Response frequency: 1000 Hz
- Response time: 500 µs
- Protection rating: IP50
- Cable length: 1 m (molded)
- Materials: housing PBT, transparent parts PC, cable PVC
- Operating temperature: -25 °C to 55 °C
- Operating humidity: 5–95 % RH (no condensation)
- Weight: approx. 19 g
