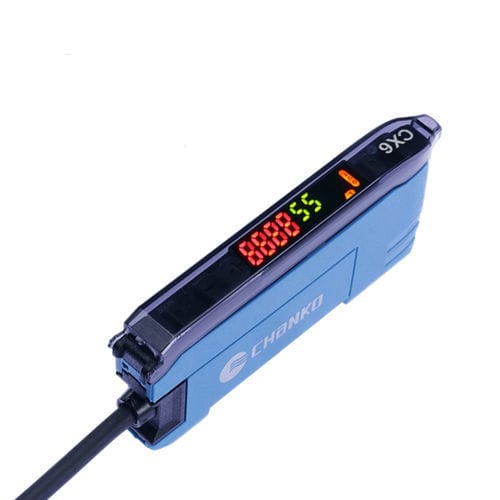

Light optical sensor CX6-DN10Sfor detectionnot specifiedfiber optic
Add to favorites
Compare this product
Characteristics
- Measured physical value
- light
- Applications
- for detection
- Other characteristics
- fiber optic, LCD display, IP code
Description
Product overview
Main functions
Optical and response characteristics
Mechanical / Electrical parameters
Operating environment
Packaging & accessories
Technical specifications
- Series: CX6 series fiber-optic sensors
- Model: CX6-DN10S
- Type: Upgraded model
- Output: NPN NO/NC (open-collector, selectable)
- Supply voltage: DC 12~24 V
- Power: Three-wire DC
- Protection class: IP50
- Connection: Molded cable
Main functions
- One-touch setup, threshold adjustment, initialization, data save/load, key lock
- Window detection, NO/NC switching, received-light zeroing
- Four detection speeds, automatic light compensation, five timer functions
- Light-level and percentage adjustment, differentiation function
- Numeric display toggle, inverted display, power-saving mode
Optical and response characteristics
- Light source: Red light
- Response frequency (selectable): 15000 Hz / 2500 Hz / 588 Hz / 27 Hz
- Response time (corresponding): 33 μs / 200 μs / 850 μs / 18 ms
- Response modes: Ultra-high speed / High speed / Standard / High-precision
Mechanical / Electrical parameters
- Signal type: Switching output
- Operating mode: Light ON / Dark ON
- Supply current: ≤ 30 mA
- Power consumption: ≤ 720 mW (≤30 mA at 24 V; ≤60 mA at 12 V)
- Insulation resistance: ≥ 20 MΩ
- Shock resistance: 150 m/s², 3 times each axis X, Y, Z
- Vibration resistance: 10–50 Hz double amplitude 0.7 mm or 50 m/s², 1.5 h each axis
- Withstand voltage: AC 1000 V 50/60 Hz 1 min (charged parts to housing)
- Weight: approx. 65 g
- Protection circuits: reverse power protection, output short-circuit protection, output reverse-connection protection, power surge protection
- Cable length: 2 m
Operating environment
- Operating/storage humidity: 25–85% RH (no freezing, no condensation)
- Ambient illumination: ≤ 10000 lx
Packaging & accessories
- Included: Manual, inspection certificate
- Housing material: PC; Cable material: PVC
Technical specifications
- Model: CX6-DN10S
- Series: CX6 series fiber-optic sensors
- Type: Upgraded model
- Output: NPN NO/NC
- Supply voltage: DC 12~24 V
- Power: Three-wire DC
- Protection class: IP50
- Connection: Molded cable, 2 m
- Response frequency (selectable): 15000 Hz / 2500 Hz / 588 Hz / 27 Hz
- Response time (corresponding): 33 μs / 200 μs / 850 μs / 18 ms
- Light source: Red
- Supply current: ≤ 30 mA
- Power consumption: ≤ 720 mW (at 24 V)
- Insulation resistance: ≥ 20 MΩ
- Shock/vibration/withstand voltage: see technical parameters
- Weight: approx. 65 g
- Materials: Housing PC, cable PVC
- Included documents: Manual, inspection certificate
