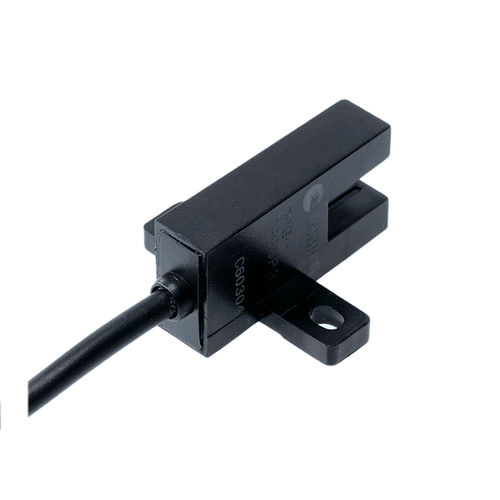

Through-beam photoelectric sensor CPG-TF05N3T

infraredhigh-performanceminiature

1. **Naming Rule**
Detection principle: Slot‑type through‑beam; Power supply: DC5‑24V.
Light source: Single‑beam optical axis.
Connection: Cable‑integrated / M12‑A connector (‑A suffix).
‑ **T type: Standard body with standard mounting holes; Cable version: CPG‑TF05N3T / CPG‑TF05P3T; M12‑A version: CPG‑TF05N3T‑A / CPG‑TF05P3T‑A**
‑ **T1 type: Optimized mounting hole layout for M3 screws; Cable version: CPG‑TF05N3T1 / CPG‑TF05P3T1; M12‑A version: CPG‑TF05N3T1‑A / CPG‑TF05P3T1‑A**
2. **Available Part Numbers**
T‑type:
Cable: CPG‑TF05N3T, CPG‑TF05P3T; M12‑A: CPG‑TF05N3T‑A, CPG‑TF05P3T‑A

T1‑type:
Cable: CPG‑TF05N3T1, CPG‑TF05P3T1; M12‑A: CPG‑TF05N3T1‑A, CPG‑TF05P3T1‑A

3. **Detection Principle**
Slot‑type through‑beam. Transmitter and receiver are integrated inside the U‑slot. Output signal is triggered when opaque object blocks the optical axis. Standard detectable object: opaque object ≥2×0.8 mm.
4. **Sensing Range**
Slot width: 5 mm; Hysteresis: ≤0.025 mm.
Indicator: Red LED (lights on when receiving light).
Remark: T/T1 differ only in housing outline and mounting hole layout with identical electrical parameters.
Response frequency: ≥1kHz (T); ≥1.5kHz (T1).
5. **Main Model Versions**
NPN / PNP transistor open‑collector output.
T, T1: Support cable‑integrated and M12‑A (‑A) connector.
6. **Key Features**
‑ Miniature slot‑type housing, supply voltage DC5‑24V
‑ Single‑beam optical axis
‑ Current consumption: ≤12 mA (‑A connector version), ≤35 mA (cable version)
‑ Max load current: 100 mA; Residual voltage: 0.8V@100mA, 0.4V@40mA
‑ Operating temperature: ‑25~+55 ℃; Storage temperature: ‑30~+80 ℃ (no icing, no condensation)
‑ Protection grade: IP50
‑ Load short‑circuit protection, **no reverse‑polarity protection**
7. **Operation Mode**
Light‑ON / Dark‑ON selectable by wiring.
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
