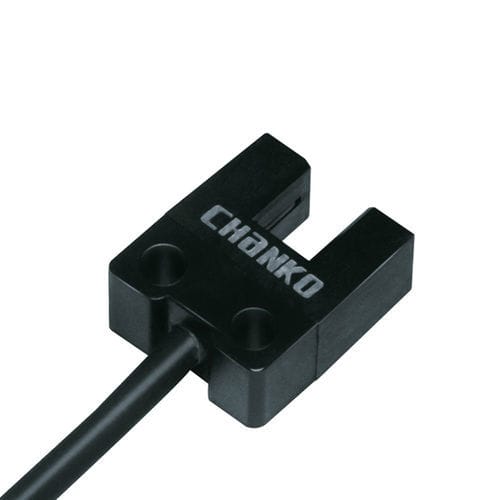

Through-beam photoelectric sensor CPG-TF05N3Uinfraredplasticfor small parts
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Type of beam
- infrared
- Other characteristics
- plastic
- Applications
- for small parts, for logistics
- Maximum range
Max.: 5 mm
(0.2 in)Min.: 0 mm
(0 in)
Description
Product family
Key features
Accessories
Standard target
Materials
Mechanical / Electrical parameters
Operating environment
Recommended applications
Technical specifications
- CPG series photomicrosensor — U-slot through-beam type
Key features
- Detection distance: 0–5 mm
- Slot structure: U-slot (slot width 5 mm)
- Detection principle: through-beam
- Cable length: 1 m (molded)
- Detection face: slot surface
- Response frequency: 1000 Hz
- Response time: 500 µs
- Light source: infrared
- Output: NPN NO/NC
- Supply voltage: DC 5–24 V
Accessories
- User manual, inspection certificate
Standard target
- Opaque objects larger than 2 × 0.8 mm
Materials
- Housing: PBT
- Lens / emitter / receiver: polycarbonate
- Cable: PVC
Mechanical / Electrical parameters
- Output type: NPN NO/NC
- Supply voltage: DC 5–24 V
- Power wiring: 4-wire DC
- Protection rating: IP50
- Connection: molded cable
- Signal type: switching
- Operating modes: Light ON / Dark ON
- Current consumption: < 35 mA
- Indicator: red LED (lights on receiving)
- Protection: short-circuit protection
- Residual voltage: ≤ 0.8 V (load 100 mA), ≤ 0.4 V (load 40 mA); for PNP transistor open-collector output DC 5–24 V ≤ 50 mA residual voltage ≤ 0.8 V (load 50 mA)
- Load current: see residual voltage specifications (refer to detailed page values)
- Shock resistance: 300 m/s², X/Y/Z directions, 3 times each
- Vibration resistance: 20–2000 Hz, amplitude 1.5 mm, X/Y/Z directions, 2 h each
- Weight: approx. 19 g
Operating environment
- Ambient temperature: -25 °C to 55 °C
- Ambient humidity: 5–95% RH (no condensation, no freezing)
- Ambient illumination: <= 1000 lx
Recommended applications
- 3C electronics assembly and inspection
- Automated parking systems
- Logistics and warehouse automation
Technical specifications
- Model: CPG-TF05N3U
- Type: U-slot through-beam photomicrosensor
- Detection distance: 0–5 mm
- Slot width: 5 mm
- Response frequency: 1000 Hz
- Response time: 500 µs
- Supply: DC 5–24 V
- Output: NPN NO/NC
- Protection: IP50
- Cable length: 1 m
- Materials: housing PBT; lens/emitter/receiver polycarbonate; cable PVC
- Weight: ≈ 19 g
