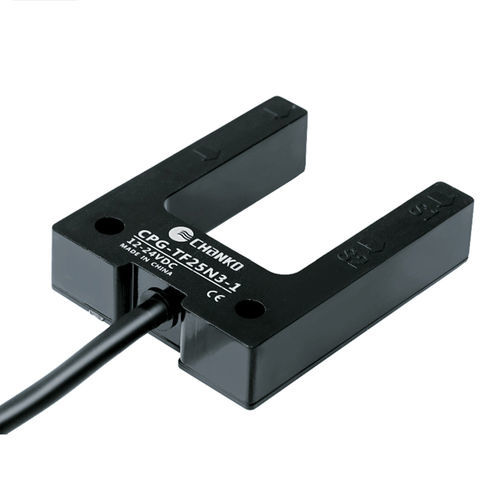

Through-beam photoelectric sensor CPG-TF25N3-2(G)rectangularinfraredplastic
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Housing
- rectangular
- Type of beam
- infrared
- Other characteristics
- plastic
- Applications
- for logistics
- Maximum range
Max.: 0 m
(0'00" )Min.: 0 m
(0'00" )
Description
Product series
Key features
Technical specifications
Mechanical / electrical parameters
Operating environment
Accessories and detection capability
Recommended applications
Characteristics / Technical summary
- CPG series photoelectric sensors (through-beam, slot-type)
Key features
- Detection distance: 0–25 mm
- Structure: slot/groove
- Detection principle: through-beam
- Groove width: 25 mm
- Output: NPN NO/NC
- Supply voltage: DC 12–24 V
Technical specifications
- Detection distance: 0–25 mm
- Structure: slot/groove
- Detection principle: through-beam
- Groove width: 25 mm
- Cable length: 2 m
- Detection direction: groove face
- Response frequency: 500 Hz
- Response time: 1 ms
- Special feature: dual optical axis
- Light source: infrared
- Accessories: user manual, certificate
- Standard detectable object: opaque objects ≥ Φ1.5 mm
- Materials: housing PC, cable PVC
Mechanical / electrical parameters
- Output: NPN NO/NC
- Supply voltage: DC 12–24 V
- Power supply: 4-wire DC
- Protection rating: IP65
- Connection: molded cable
- Signal type: switching
- Operating mode: Light ON / Dark ON
- Current consumption: < 40 mA
- Protection circuits: short-circuit protection, mutual interference prevention
- Residual voltage: < 3 V
- Load current: ≤ 100 mA (residual voltage ≤ 3 V with 2 m cable)
- Insulation resistance: ≥ 20 MΩ (DC 500 V megger)
- Shock resistance: 300 m/s², X/Y/Z directions, 3 times
- Withstand voltage: AC 1000 V 50/60 Hz 1 min (charged parts to housing)
- Vibration resistance: 10–55 Hz, amplitude 1.5 mm, X/Y/Z directions, 2 h
- Weight: approx. 52 g
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating/storage humidity: 35–95% RH (no condensation)
- Ambient illumination: <= 10,000 lx
Accessories and detection capability
- Included accessories: user manual, certificate
- Standard detectable object: opaque objects ≥ Φ1.5 mm
Recommended applications
- 3C electronics assembly and inspection
- Automated parking systems
- Logistics and warehousing detection
Characteristics / Technical summary
- Model: CPG-TF25N3-2(G)
- Detection distance: 0–25 mm
- Groove width: 25 mm
- Output: NPN NO/NC
- Supply: DC 12–24 V, 4-wire
- Protection: IP65
- Response time/frequency: 1 ms / 500 Hz
- Cable length: 2 m
- Materials: housing PC, cable PVC
- Weight: ~52 g
