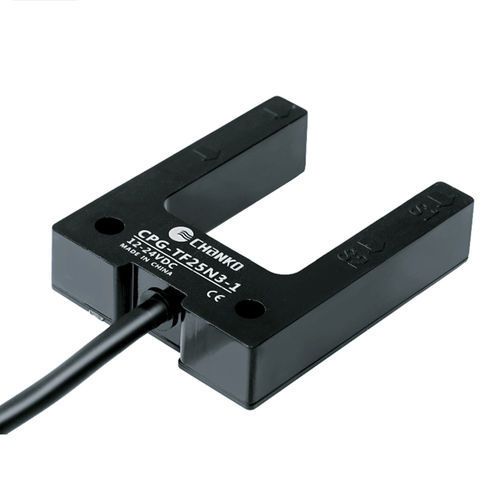

Through-beam sensor photoelectric sensor CPG-TF25N3-2through-beaminfraredplastic
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam sensor, through-beam
- Type of beam
- infrared
- Other characteristics
- plastic
- Maximum range
Max.: 0 m
(0'00" )Min.: 0 m
(0'00" )
Description
Product overview
Key features
Mechanical / electrical parameters
Environmental conditions
Recommended applications
Manufacturer
Technical specifications (summary)
- Series: CPG series photoelectric sensors
- Model: CPG-TF25N3-2
- Detection principle: Through-beam (opposed)
- Form factor: Slot-type
- Detection range: 0–25 mm
- Slot width: 25 mm
- Output: NPN NO/NC (switch output)
- Supply voltage: DC 12–24 V
Key features
- Cable length: 2 m (molded)
- Detection direction: slot face
- Response frequency: 500 Hz
- Response time: 1 ms
- Optical configuration: dual optical axes
- Light source: infrared
- Accessories: user manual, certificate
- Standard detectable object: opaque objects Φ1.5 mm and above
- Materials: housing PC, cable PVC
Mechanical / electrical parameters
- Output type: NPN NO/NC
- Supply: DC 12–24 V (4-wire DC)
- Wiring: molded cable
- Protection rating: IP65
- Signal type: switch output
- Operating modes: Light ON / Dark ON
- Current consumption: ≤ 40 mA
- Protection circuits: short-circuit protection, mutual interference prevention
- Residual voltage: < 3 V
- Load current: ≤ 100 mA (residual voltage < 3 V with 2 m cable)
- Insulation resistance: > 20 MΩ (measured at DC 500 V)
- Shock resistance: 300 m/s², 3 times each X/Y/Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h each X/Y/Z
- Weight: approx. 52 g
Environmental conditions
- Operating temperature: -25 °C to 55 °C
- Humidity: 35–95% RH (no condensation) for operation/storage
- Ambient illumination: up to 10000 lx
Recommended applications
- Industrial automation for detection and positioning
- Object detection in 3C electronics, automated parking systems, logistics and warehousing
Manufacturer
- 长江传感
Technical specifications (summary)
- Model: CPG-TF25N3-2
- Detection: through-beam slot 0–25 mm, slot 25 mm
- Output: NPN NO/NC, switch
- Supply: DC 12–24 V, 4-wire
- IP rating: IP65
- Response: 1 ms / 500 Hz
- Cable: molded, 2 m
- Weight: ~52 g
