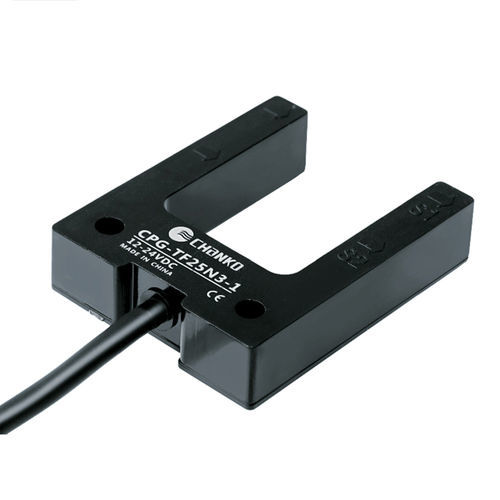

Through-beam sensor photoelectric sensor CPG-TF25N3-1through-beaminfraredhigh-speed
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam sensor, through-beam
- Type of beam
- infrared
- Other characteristics
- plastic, high-speed
- Maximum range
Max.: 0 m
(0'00" )Min.: 0 m
(0'00" )
Description
Product overview
Technical specifications
Mechanical / Electrical parameters
Environmental conditions
Accessories / Key specifications
- Model: CPG-TF25N3-1 (CPG series photoelectric sensor)
- Detection distance: 0–25 mm
- Structure: slot type
- Detection principle: through‑beam
- Slot width: 25 mm
- Output: NPN NO/NC
- Supply voltage: DC 12–24 V
Technical specifications
- Detection distance: 0–25 mm
- Slot width: 25 mm
- Cable length: 2 m
- Detection face: slot surface
- Response frequency: 500 Hz
- Response time: 1 ms
- Optical axis: single
- Light source: infrared
- Standard detectable object: opaque object ≥ Φ1.5 mm
- Materials: housing PC; cable PVC
Mechanical / Electrical parameters
- Output type: NPN NO/NC
- Supply voltage: DC 12–24 V
- Power supply: DC four‑wire
- Protection rating: IP65
- Connection: molded cable (2 m)
- Signal type: switching
- Operation mode: Light ON / Dark ON
- Current consumption: <25 mA
- Protection circuits: short‑circuit protection, mutual interference prevention
- Residual voltage: <3 V
- Load current: <100 mA (residual voltage <3 V with 2 m cable)
- Insulation resistance: >20 MΩ (DC 500 V megohmmeter)
- Shock resistance: 300 m/s², 3 times each on X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts to housing)
- Vibration resistance: 10–55 Hz, amplitude 1.5 mm, X/Y/Z 2 h each
- Weight: approx. 52 g
Environmental conditions
- Operating temperature: -25 °C to 55 °C
- Operating/storage humidity: 35–95% RH (no condensation)
- Ambient illumination: <10000 lx
Accessories / Key specifications
- Included: user manual, inspection certificate
- Key specs: Detection 0–25 mm; Slot 25 mm; Output NPN NO/NC; Supply DC 12–24 V; Cable 2 m; Response 1 ms; Frequency 500 Hz; IP65; Weight ≈52 g
