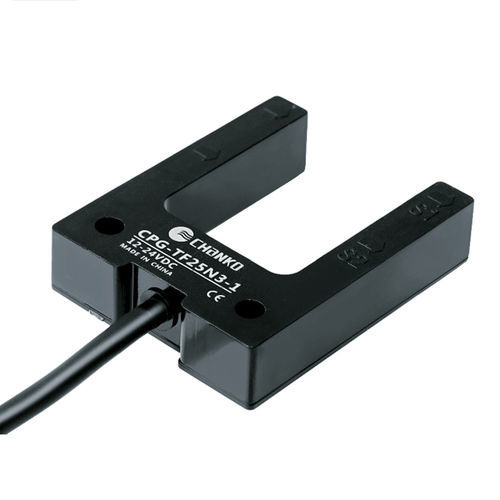

Through-beam photoelectric sensor CPG-TF25N3-1(G)infraredplasticfor object detection
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Type of beam
- infrared
- Other characteristics
- plastic
- Applications
- for object detection
- Maximum range
Max.: 0 m
(0'00" )Min.: 0 m
(0'00" )
Description
Product
Main features
Technical specifications
Mechanical / Electrical parameters
Operating environment
Included accessories
Technical data summary
- Series: CPG series photoelectric sensor
- Model: CPG-TF25N3-1(G)
Main features
- Detection distance: 0–25 mm
- Slotted (groove) structure; slot width: 25 mm
- Detection principle: through-beam
- Output type: NPN, selectable NO/NC
- Supply voltage: DC 12–24 V
- Cable length: 2 m
Technical specifications
- Standard detectable object: opaque objects with diameter ≥ Φ1.5 mm
- Light source: infrared
- Optical arrangement: single optical axis
- Response frequency: 500 Hz
- Response time: 1 ms
- Weight: approx. 52 g
Mechanical / Electrical parameters
- Output method: NPN (NO/NC)
- Power supply: DC 12–24 V, 4-wire DC
- Current consumption: < 25 mA
- Load current: < 100 mA (residual voltage < 3 V with 2 m cable)
- Residual voltage: < 3 V
- Insulation resistance: ≥ 20 MΩ (measured at DC 500 V)
- Protection rating: IP65
- Connection: molded cable (2 m)
- Operation mode: activation on light or on dark
- Protection circuits: short-circuit protection and mutual interference prevention
- Shock resistance: 300 m/s², 3 times in X, Y, Z directions
- Vibration resistance: 10–55 Hz, amplitude 1.5 mm, X/Y/Z 2 h
- Withstand voltage: AC 1000 V 50/60 Hz 1 min between live parts and housing
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating/storage humidity: 35%–95% RH (no condensation)
- Ambient illumination: < 10000 lx
Included accessories
- User manual
- Certificate of conformity
Technical data summary
- Model: CPG-TF25N3-1(G)
- Series: CPG
- Detection distance: 0–25 mm
- Slot width: 25 mm
- Output: NPN (NO/NC)
- Supply voltage: DC 12–24 V
- Protection rating: IP65
- Cable length: 2 m
- Response frequency: 500 Hz
- Response time: 1 ms
- Housing material: PC; Cable material: PVC
- Weight: approx. 52 g
