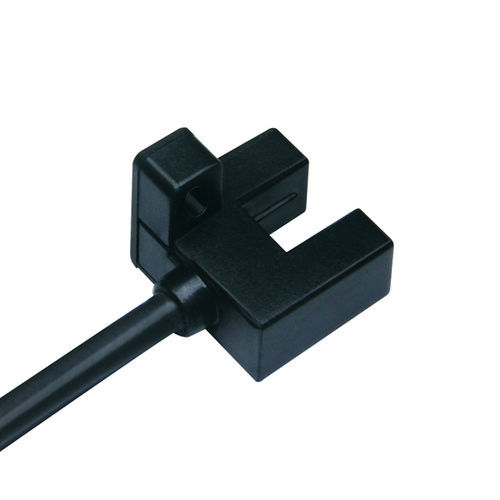

Through-beam photoelectric sensor CPG-TF05N3F1infraredfor logisticsfor object detection
Add to favorites
Compare this product
Characteristics
- Sensing mode
- through-beam
- Type of beam
- infrared
- Applications
- for object detection, for logistics
- Maximum range
Min.: 0 mm
(0 in)Max.: 5 mm
(0.2 in)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Accessories
Recommended applications
Features / specifications (summary)
- Model: CPG-TF05N3F1
- Series: CPG series photoelectric sensors
- Detection distance: 0–5 mm
- Structure: slot type
- Detection principle: through-beam (transmissive)
- Slot width: 5 mm
- Output: NPN NO/NC
- Supply voltage: DC 5–24V
Technical specifications
- Detection distance: 0–5 mm
- Structure: slot type, slot width 5 mm
- Detection principle: through-beam
- Cable length: 1 m
- Detection direction: groove face
- Response frequency: 1000 Hz
- Response time: 500 μs
- Special type: F1
- Light source: infrared
- Accessories: user manual, inspection certificate
- Standard detectable object: opaque object ≥ 2 × 0.8 mm
- Materials: housing PBT; light-transmitting parts, emitter and receiver polycarbonate; cable PVC
Mechanical / electrical parameters
- Output: NPN NO/NC (switch output)
- Supply: DC 5–24V, four-wire DC
- Ingress protection: IP50
- Connection: molded cable
- Signal type: switching
- Operating modes: Light ON / Dark ON
- Current consumption: <35 mA
- Indicator: red LED (lit when receiving light)
- Protection: short-circuit protection
- Residual voltage: <0.8 V at 100 mA load; <0.4 V at 40 mA load; for PNP open-collector output DC5–24V ≤50 mA residual voltage <0.8 V at 50 mA
- Load current: see residual voltage/load current specifications
- Shock resistance: 300 m/s², X/Y/Z 3 times
- Vibration resistance: 20–2000 Hz, amplitude 1.5 mm, X/Y/Z 2 h each
- Weight: approx. 19 g
Operating environment
- Operating temperature: -25 °C to 55 °C
- Operating humidity: 5–95% RH (no condensation, no freezing)
- Ambient illumination: ≤1000 lx
Accessories
- User manual
- Inspection certificate
Recommended applications
- Detection applications in 3C electronics, automated parking systems, logistics and warehousing
Features / specifications (summary)
- Model: CPG-TF05N3F1
- Series: CPG
- Detection distance: 0–5 mm
- Structure: slot type, slot width 5 mm
- Detection principle: through-beam, infrared light source
- Output: NPN NO/NC (switch)
- Power: DC 5–24V, four-wire DC
- Connection: molded cable (1 m)
- Response frequency / time: 1000 Hz / 500 μs
- Ingress protection: IP50
- Operating modes: Light ON / Dark ON
- Current consumption: <35 mA
- Indicator: red LED (lights when receiving)
- Protection & reliability: short-circuit protection; shock 300 m/s²; vibration 20–2000 Hz
- Materials: housing PBT; optical parts polycarbonate; cable PVC
- Standard detectable object: ≥2 × 0.8 mm opaque
- Operating conditions: -25 °C to 55 °C, 5–95% RH, illumination ≤1000 lx
- Accessories: user manual, inspection certificate
