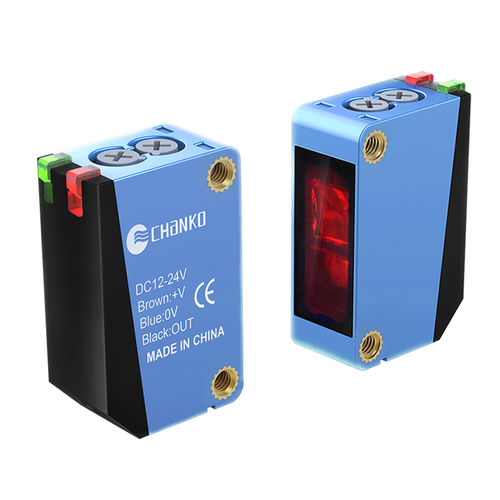

Through-beam photoelectric sensor CPY-TR40MN3-A

rectangularsquarered light

1. **Naming Rule (digit 4‑digit 11 definition)**
(1) digit 4: Detection principle
T: Through‑beam
(2) digit 5: Light source type
R: Red light
(3) digit 7: Sensing distance (unit: mm; use “m” for distance over 1 m): 20 m
(4) digit 8: Output type
N: NPN, P: PNP
(5) digit 9: Output status
3: Switchable Light‑ON / Dark‑ON
(6) digit 10: Cable / connector requirement
‑ Blank: Pre‑formed cable
‑ A: M12 connector type
(7) digit 11: Special requirements
No special suffix for this subgroup.
2. **Available Part Numbers**
‑ Pre‑formed cable:
CPY‑TR20MN3Through‑beam, Red light, 20 m, NPN
CPY‑TR20MP3Through‑beam, Red light, 20 m, PNP
‑ M12 connector type:
CPY‑TR20MN3‑AThrough‑beam, Red light, 20 m, NPN
CPY‑TR20MP3‑AThrough‑beam, Red light, 20 m, PNP
3. **Detection Principle**
Through‑beam type, composed of transmitter and receiver. **Standard detecting object: opaque object above Φ10 mm**.
4. **Sensing Distance Range**
20 m
5. **Main Model Versions**
Available with pre‑formed cable or M12 connector; NPN / PNP outputs optional.
6. **Key Features**
‑ Strong anti‑interference performance
‑ Multiple built‑in protection circuits (reverse‑connection, over‑current, short‑circuit protection)
‑ Response time: 1 ms
‑ IP65 protection degree
‑ Housing material: ABS; lens / display window: PC
‑ Operating temperature: ‑25 ℃ ~ +55 ℃
‑ Dual‑colour indicator: red for operation status, green for stability status
7. **Operation Mode**
Switchable Light‑ON / Dark‑ON mode via adjustment knob.
8. **Output Options**
NPN or PNP transistor open‑collector output.
