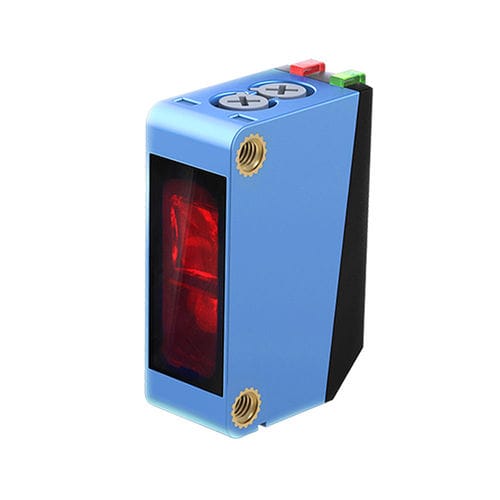

1. Naming Rule
(1) Detection principle
DB: Background‑suppression diffuse‑reflective
(2) Light source type
R: Red light
(3) Sensing setting range:
300: 25‑300 mm
(4) Output type
N: NPN, P: PNP
(5) Output status
3: Switchable Light‑ON / Dark‑ON
(6) Cable / connector requirement
‑ Blank: Pre‑formed cable; suffix /T for strip‑spot variant
‑ No M12‑A connector version for this series
(7) Special requirements
‑ /T : Strip‑spot special suffix
2. Available Part Numbers*
‑ Pre‑formed cable
CPY‑DBR300N3 Background‑suppression, Strip‑spot Red light, 25‑300 mm, NPN
CPY‑DBR300P3 Background‑suppression, Strip‑spot Red light, 25‑300 mm, PNP
3. Detection Principle
Background‑suppression diffuse‑reflective type with strip‑shaped light spot. Background suppression valid within 25‑300 mm,Detects target by receiving reflected light from object surface.
4. Sensing Range
Setting distance range: 25‑300 mm
Blind zone: 5‑10 mm
Background‑suppression effective range: 10‑300 mm
5. Main Model Versions
Pre‑formed cable type available;
M12-Head available;
NPN / PNP outputs optional.
6. Key Features
‑ Strip‑shaped light spot, background‑suppression function
‑ Hysteresis: ≤5% of operating distance
‑ Spot size: approx. 4 mm (at 100 mm distance)
‑ Multiple built‑in protection circuits (reverse‑power‑supply protection, output short‑circuit protection, output reverse‑connection protection)
‑ Response time: ≤1 ms
‑ IP65 protection degree
‑ Housing material: ABS; lens / display window: PC
‑ Operating temperature: ‑25 ℃ ~ +70 ℃Storage temperature: ‑40 ℃ ~ +80 ℃ (no icing, no condensation)
‑ Dual‑colour indicator for operation & stability status
7. Operation Mode
Switchable Light‑ON / Dark‑ON mode via wire selection.
8. Output Options
NPN or PNP transistor open‑collector output.
9.Aplication:
Logistic industry:such as AGV,Conveying,Sorting and Warehousing.
Access door industry:such as Access gates,Screen doors and Security doors.etc..
