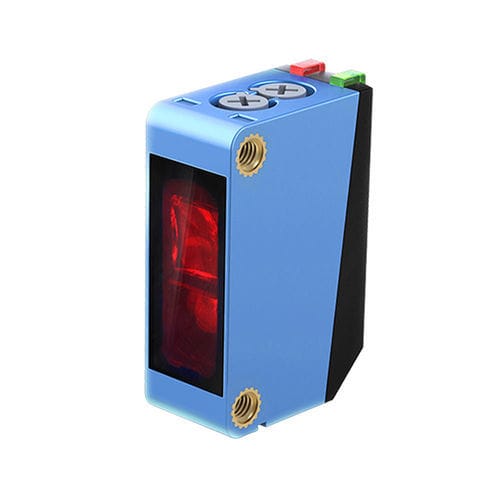

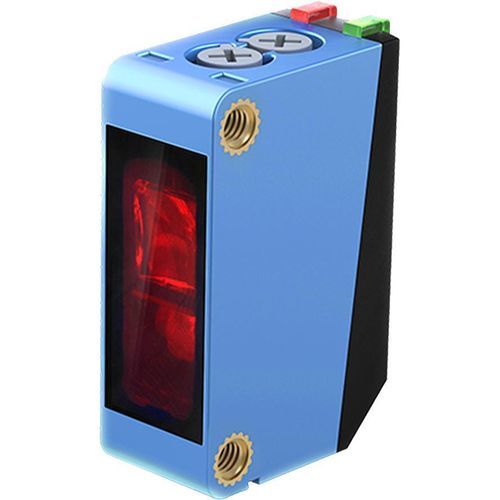

Photoelectric sensor with background suppression CPY-DBR250P3

rectangularsquarered light

1. **Naming Rule (digit 4‑digit 11 definition)**
(1) digit 4: Detection principle
DB: Background‑suppression diffuse‑reflective
(2) digit 5: Light source type
R: Red light
(3) digit 7: Sensing setting range
‑ Large‑spot: 35‑250 mm
‑ Small‑spot: 25‑300 mm
(4) digit 8: Output type
N: NPN, P: PNP
(5) digit 9: Output status
3: Switchable Light‑ON / Dark‑ON
(6) digit 10: Cable / connector requirement
‑ Blank: Pre‑formed cable
‑ A: M12 connector type; /X: small‑spot variant suffix
(7) digit 11: Special requirements
‑ /X : Small‑spot special suffix; no suffix for large‑spot.
2. **Available Part Numbers**
‑ Large‑spot (Red light 617nm, 35‑250 mm)
Pre‑formed cable
CPY‑DBR250N3Background‑suppression, Red light, 35‑250 mm, NPN
CPY‑DBR250P3Background‑suppression, Red light, 35‑250 mm, PNP

M12 connector type
CPY‑DBR250N3‑ABackground‑suppression, Red light, 35‑250 mm, NPN
CPY‑DBR250P3‑ABackground‑suppression, Red light, 35‑250 mm, PNP

‑ Small‑spot (Red light 650nm, 25‑300 mm, suffix /X)
Pre‑formed cable
CPY‑DBR300N3/XBackground‑suppression, Small‑spot Red light, 25‑300 mm, NPN
CPY‑DBR300P3/XBackground‑suppression, Small‑spot Red light, 25‑300 mm, PNP

M12 connector type
CPY‑DBR300N3/X‑ABackground‑suppression, Small‑spot Red light, 25‑300 mm, NPN
CPY‑DBR300P3/X‑ABackground‑suppression, Small‑spot Red light, 25‑300 mm, PNP

3. **Detection Principle**
Background‑suppression diffuse‑reflective type. Eliminates interference from background objects, detects target object by receiving reflected light from object surface.**Standard detecting object: white matte paper**.
4. **Sensing Setting Range**
‑ Large‑spot model: 35‑250 mm
‑ Small‑spot model: 25‑300 mm
5. **Main Model Versions**
Available with pre‑formed cable or M12 connector; NPN / PNP outputs optional.
6. **Key Features**
‑ Strong anti‑interference performance with background‑suppression function
‑ Multiple built‑in protection circuits (reverse‑connection, over‑current, short‑circuit protection)
‑ Response time: 1 ms (large‑spot), 2 ms (small‑spot)
‑ IP65 protection degree
‑ Housing material: ABS; lens / display window: PC
‑ Operating temperature: ‑25 ℃ ~ +55 ℃
‑ Dual‑colour indicator for operation & stability status
7. **Operation Mode**
Switchable Light‑ON / Dark‑ON mode via adjustment knob.
8. **Output Options**
NPN or PNP transistor open‑collector output.
