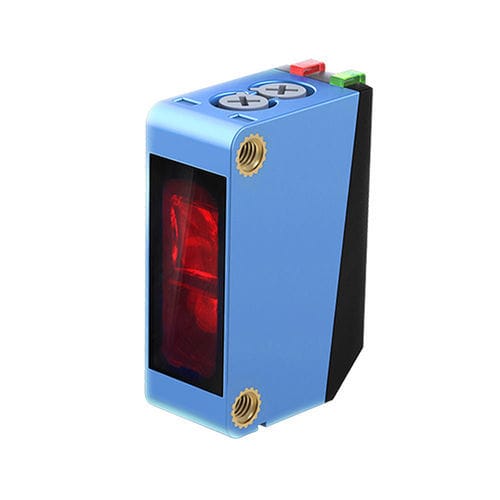

Rectangular photoelectric sensor CPY-DBR250P3-A

squarelaserlong-range

TOF (Time‑of‑Flight) sensor emits modulated infrared pulses and measures the light’s round‑trip flight time to calculate absolute distance. It delivers reliable distance readings largely independent of target reflectivity, effectively suppressing background interference.TOF (Time‑of‑Flight) sensor emits modulated infrared pulses and measures the light’s round‑trip flight time to calculate absolute distance. It delivers reliable distance readings largely independent of target reflectivity, effectively suppressing background interference.TOF (Time‑of‑Flight) sensor emits modulated infrared pulses and measures the light’s round‑trip flight time to calculate absolute distance. It delivers reliable distance readings largely independent of target reflectivity, effectively suppressing background interference.
1. **Naming Rule (digit 4‑digit 11 definition)**
Detection principle: Background‑suppression type
Light source: 940 nm infrared laser
Output type: NPN / PNP
Form: Cable / M12 connector
‑ 2 m versionCPY‑LF2MN3(NPN‑cable)CPY‑LF2MP3(PNP‑cable)CPY‑LF2MN3‑A(NPN‑M12)CPY‑LF2MP3‑A(PNP‑M12)
‑ 4 m versionCPY‑LF4MN3(NPN‑cable)CPY‑LF4MP3(PNP‑cable)CPY‑LF4MN3‑A(NPN‑M12)CPY‑LF4MP3‑A(PNP‑M12)
2. **Available Part Numbers**
CPY‑LF2MN3、CPY‑LF2MP3、CPY‑LF2MN3‑A、CPY‑LF2MP3‑A
CPY‑LF4MN3、CPY‑LF4MP3、CPY‑LF4MN3‑A、CPY‑LF4MP3‑A
3. **Detection Principle**
Background‑suppression sensor adopting 940 nm infrared laser light source. Eliminates interference from background objects, detects target objects regardless of background reflectivity.
4. **Sensing Range**
Max detection distance: 2 m / 4 m
Spot size: approx. 40*30 mm @ 2 mapprox. 80*60 mm @ 4 m
Standard detecting object: white drawing paper (200*200 mm)
Repeat accuracy: ≤5 mmBlack‑white error: 10 mm
5. **Main Model Versions**
Two distance grades (2 m, 4 m); cable or M12 connector output; NPN / PNP output optional.
6. **Key Features**
‑ Maximum detection distance up to 4 m
‑ One‑button teach‑in setting
‑ Built‑in multiple protections: reverse‑power‑supply, surge absorption, output over‑current & short‑circuit, output reverse‑connection, mutual interference prevention
‑ Response time: 100 ms
‑ Supply voltage: DC12‑24V (DC10‑30V permissible)
‑ Power consumption: 300 mW
‑ Operating temperature:‑20~+55℃Storage temperature:‑25~+70℃ (no icing, no condensation)
‑ Protection class: IP65, IP67 customizable
‑ Vibration & shock resistance for industrial application
7. **Operation Mode**
Light‑ON / Dark‑ON selectable via teach‑in button.
8. **Output Options**
NPN or PNP transistor open‑collector output.1. **Naming Rule (digit 4‑digit 11 definition)**
