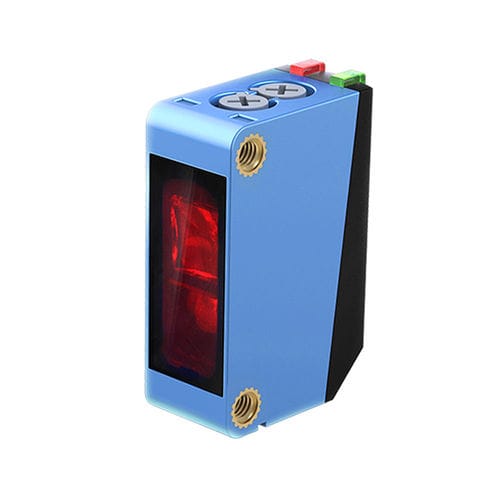

CPY-DBR60 Series Background suppression Photoelectric Sensor
The CPY-DBR60 is a compact square background suppression (BGS) photoelectric switch. Based on the triangulation ranging principle, it detects targets independent of object reflectivity, effectively eliminating false triggering caused by rear-side backgrounds such as machine frames and plates. It delivers consistent detection for both dark colored and light colored work-pieces with minimal black-white detection error.
The sensing range is adjustable from 15-60 mm via a 5-turn potentiometer for precise threshold setting. Equipped with a red-light LED source for focused light spot. Both NPN and PNP open-collector outputs are available. Cable-type and M12 connector-type (suffix-A) versions meet different wiring and maintenance requirements.
Operating voltage: DC10-30 V, maximum load current 100mA, fast response time. IP65 dust‑proof and waterproof rating. Built-in multi-protections against reverse polarity, short‑circuit and output over-current. Wide operating temperature range from -25℃ to +55℃, suitable for various industrial automation conditions.
Application Scenarios: Assembly production lines, packaging machinery, presence detection of 3C components, positioning of small size work-pieces, material conveying for logistics. Ideal for installation constrained locations and workstations with complex backgrounds prone to false detection
1. Naming Rule (digit 4‑digit 11 definition)

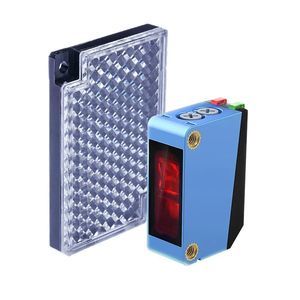

Detection principle: Polarized‑light retro‑reflective
Light source: Red LED 650 nm
Output type: NPN / PNP
‑ Cable versionCPY‑RMR2MN3‑SNPNCPY‑RMR2MP3‑SPNP
2. Available Part Numbers
CPY‑RMR2MN3‑S
CPY‑RMR2MP3‑S
3. **Detection Principle**
Polarized‑light retro‑reflective type, specially designed for detecting transparent objects. Detects transparent or non‑transparent objects with light transmittance 92%.
4. Sensing Range
Standard detection object: φ30 mm and above transparent / non‑transparent object
Spot size: 11 mm @ 400 mm distance
5. Main Model Versions
Cable output only; NPN / PNP selectable.
6. Key Features
‑ Dedicated for transparent object detection, strong anti‑interference capability
‑ Service life: 40,000 hours, TUe=+25℃
‑ Response time: ≤1 ms, response frequency ≤500 Hz
‑ Multiple protection circuits: reverse‑power‑supply, output short‑circuit, output reverse‑connection, output over‑current protection
‑ Ambient temperature: operating ‑25~+55℃; storage ‑25~+65℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 optional)
‑ Shock resistance: acceleration 500 m/s² approx. 50G, X/Y/Z axis 2 hours each
‑ Indicators: green, red, yellow status LED; orange for action & over‑current alarm
7. Operation Mode
Light‑ON / Dark‑ON switchable, long press key 5‑8 s for mode switching.
8. Output Options
NPN / PNP transistor open‑collector output.1. **Naming Rule (digit 4‑digit 11 definition)
Detection principle: Polarized‑light retro‑reflective
Light source: Red LED 650 nm
Output type: NPN / PNP
‑ Cable versionCPY‑RMR2MN3‑SNPNCPY‑RMR2MP3‑SPNP
2. Available Part Numbers
CPY‑RMR2MN3‑S
CPY‑RMR2MP3‑S
3. Detection Principle
Polarized‑light retro‑reflective type, specially designed for detecting transparent objects. Detects transparent or non‑transparent objects with light transmittance 92%.
4. Sensing Range
Standard detection object: φ30 mm and above transparent / non‑transparent object
Spot size: 11 mm @ 400 mm distance
5. Main Model Versions
Cable output only; NPN / PNP selectable.
6. Key Features
‑ Dedicated for transparent object detection, strong anti‑interference capability
‑ Service life: 40,000 hours, TUe=+25℃
‑ Response time: ≤1 ms, response frequency ≤500 Hz
‑ Multiple protection circuits: reverse‑power‑supply, output short‑circuit, output reverse‑connection, output over‑current protection
‑ Ambient temperature: operating ‑25~+55℃; storage ‑25~+65℃ (no icing, no condensation)
‑ Protection class: IP65 (IP67 optional)
‑ Shock resistance: acceleration 500 m/s² approx. 50G, X/Y/Z axis 2 hours each
‑ Indicators: green, red, yellow status LED; orange for action & over‑current alarm
7. Operation Mode
Light‑ON / Dark‑ON switchable, long press key 5‑8 s for mode switching.
8. Output Options
NPN / PNP transistor open‑collector output.
