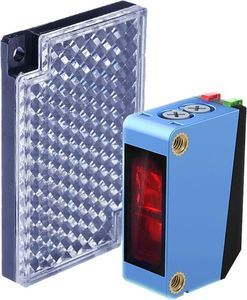

Retroreflective photoelectric sensor CPY-RMR4MN3
polarized retroreflectiverectangularsquare

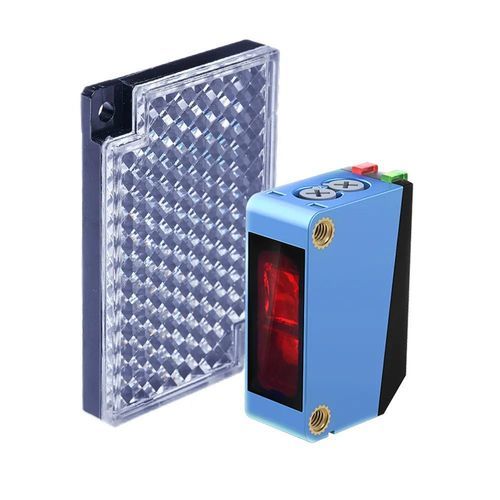

Retroreflective photoelectric sensor - CPY-RMR4MN3 - CHANKO SENSOR - polarized retroreflective / rectangular / square
Retroreflective photoelectric sensor - CPY-RMR4MN3 - CHANKO SENSOR - polarized retroreflective / rectangular / square
Retroreflective photoelectric sensor - CPY-RMR4MN3 - CHANKO SENSOR - polarized retroreflective / rectangular / square - image - 2
Retroreflective photoelectric sensor - CPY-RMR4MN3 - CHANKO SENSOR - polarized retroreflective / rectangular / square - image - 3
Retroreflective photoelectric sensor - CPY-RMR4MN3 - CHANKO SENSOR - polarized retroreflective / rectangular / square - image - 4
Add to favorites
Compare this product

Characteristics

Sensing mode
retroreflective, polarized retroreflective
Housing
rectangular, square
Type of beam
red light
Other characteristics
compact, plastic, polarized
Applications
for food industry applications, for logistics, for gate, for object detection, for automatic doors, for robotics, for packaging machines, for plastics, for small parts
Maximum range

Max.: 4 m
(13'01" )

Min.: 0.1 m
(0'04" )

Description

Product overview
  • Model: CPY-RMR4MN3
  • Series: CPY photoelectric sensors
  • Detection distance: 0–4 m
  • Form factor: compact rectangular
  • Sensing principle: polarized retro-reflective
  • Dimensions: 21 × 12 × 32 mm
  • Output: NPN NO/NC
  • Supply voltage: DC 12–24 V


Accessories
  • User manual
  • Reflector
  • Mounting bracket
  • Mounting screws
  • Adjustment screwdriver
  • Certificate


Technical specifications
  • Detection distance: 0–4 m
  • Form factor: compact rectangular
  • Sensing principle: polarized retro-reflective
  • Dimensions: 21 × 12 × 32 mm
  • Cable length: 2 m
  • Detection direction: front
  • Response frequency: 500 Hz
  • Response time: 1 ms
  • Light source: red
  • Beam angle: ≤ 2°
  • Standard target: opaque object φ ≥ 75 mm
  • Materials: housing ABS; lens/window PC; cable PVC


Mechanical / electrical parameters
  • Output: NPN NO/NC
  • Supply voltage: DC 12–24 V
  • Power supply: DC three-wire
  • Protection rating: IP65
  • Connection: molded cable
  • Signal type: switching
  • Operation mode: Light ON / Dark ON
  • Current consumption: < 25 mA
  • Indicators: operation (red), stability (green)
  • Protection circuit: short-circuit protection
  • Residual voltage: < 3 V
  • Load current: ≤ 100 mA (residual voltage < 3 V with 2 m cable)
  • Insulation resistance: > 20 MΩ (DC 500 V megger)
  • Sensitivity adjustment: single-turn potentiometer
  • Shock resistance: 300 m/s², X/Y/Z 10 times
  • Dielectric strength: AC 1000 V 50/60 Hz 1 min (charging part to housing)
  • Vibration resistance: 10–55 Hz, amplitude 1.5 mm, X/Y/Z 2 h
  • Weight: approx. 35 g


Operating environment
  • Operating temperature: -25 °C to 55 °C
  • Operating/storage humidity: 35–95% RH (no condensation)
  • Ambient illumination: ≤ 10000 lx


Key specifications
  • Model: CPY-RMR4MN3
  • Type: polarized retro-reflective photoelectric sensor
  • Detection distance: 0–4 m
  • Supply: DC 12–24 V, three-wire
  • Output: NPN NO/NC switching
  • Protection: IP65
  • Dimensions: 21 × 12 × 32 mm
  • Cable length: 2 m
  • Response: 500 Hz / 1 ms
  • Weight: ≈ 35 g
