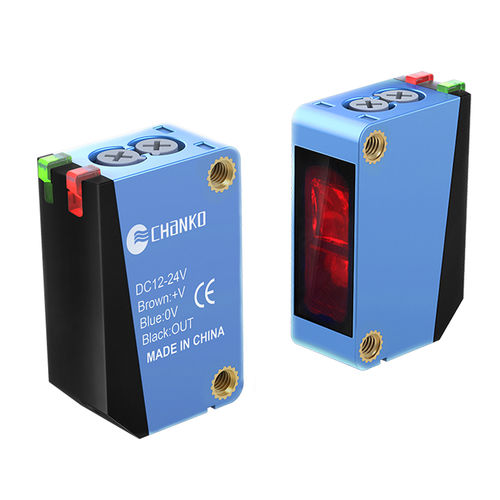

Through-beam photoelectric sensor CPY-TR40MP3-A

rectangularsquaremultibeam

1. Naming Rule
(1) Digit  4: Detection principle (D: Diffuse reflection, T: Through‑beam, R: Retro‑reflective, DB: diffuse reflection background suppression, RM:Polarized retro‑reflective)
(2) Digit   5: Light source type ( R: Red light, F: Infrared light,E:lasert, RP: Red light front emission, RF: Red light side emission )
(3) Digit 7: Sensing distance (unit: mm; use “m” for distance over 1 m)
(4) Digit 8: Output type (N: NPN,P: PNP, - T: Push‑pull output, R: Relay output)
(5) Digit 9: Output status (1: Dark‑ON, 2: Light‑ON, 3: Switchable Light‑ON / Dark‑ON)
(6) Digit10: Cable / connector requirement (Blank: Pre‑formed cable, A: M12 connector type)
(7) Digit 11: Special requirements (K: IP67 protection, X: Small light spot,S: Transparent‑object, detection,T: Strip light spot,M: Dust‑environment dedicated,P: High‑performance version-)

2. Detection Principles
- Through‑beam reflection
- Polarized retro‑reflective
- Diffuse reflection
- Background suppression

3. Main Model Versions
Available with pre‑formed cable or M12 connector; both NPN and PNP output types are covered for each detection principle.

4. Key Features
- Strong anti‑interference performances
- Multiple built‑in protection circuits (reverse‑connection, over‑current, short‑circuit protection)
- Response time: 1 ms
- IP65 protection degree
- Housing material: ABS; lens / display window: PC
- Operating temperature: ‑25 ℃ ~ +55 ℃
- Dual‑colour indicator: red for operation status, green for stability status

5. Sensing Distance Range
- Through‑beam: 5 m (red LED), 40 m (infrared LED)
- Polarized retro‑reflective: 2 m
- Diffuse reflection: 100 mm, 300 mm, 1 m

6. Operation Mode
Switchable Light‑ON / Dark‑ON mode via adjustment knob.

7. Output Options
NPN or PNP transistor open‑collector output.

8.Specifications/Models
- CPY‑TR5MN3Through‑beam, Red light, 5 m
- CPY‑TR5MP3Through‑beam, Red light, 5 m
- CPY‑TR5MN3‑AThrough‑beam, Red light, 5 m
- CPY‑TR5MP3‑AThrough‑beam, Red light, 5 m- CPY‑TR5MN3Through‑beam, Red light, 5 m
- CPY‑TR5MP3Through‑beam, Red light, 5 m
- CPY‑TR5MN3‑AThrough‑beam, Red light, 5 m
- CPY‑TR5MP3‑AThrough‑beam, Red light, 5 m
