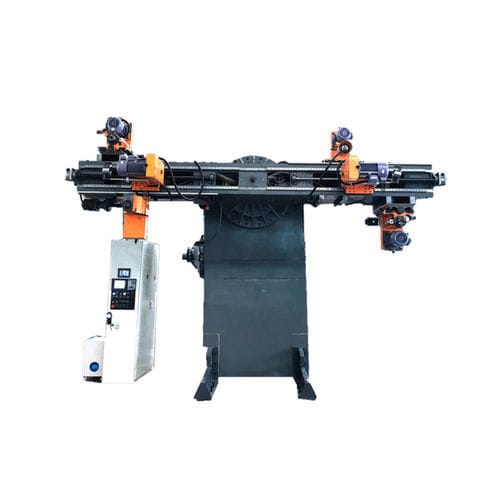

CNC drilling machine FDS5000

horizontal

Overview
FDS5000 drilling and cutting machine is a dedicated unit for cutting blade end faces and drilling holes on wind turbine blades. It is designed for blade diameters from 2.5 m to 5.0 m (2500–5000 mm).

Main features

• Transverse horizontal layout with compact structure and high rigidity.
• Composed of bed, spindle indexing section, drilling and cutting section; equipped with pneumatic system, blade support and feed system, lubrication system, dust extraction and an independent electrical cabinet.
• Indexing and hole drilling use a two-stage worm gear reducer with a servo motor driving the spindle for precise indexing and machining accuracy.
• Specialized for end-face cutting and hole drilling on wind turbine blades, optimized for 2.5–5.0 m diameter blades.

Machine components

• Bed: provides overall support and a rigid foundation.
• Spindle indexing section: for blade indexing, positioning and rotation.
• Drilling and cutting section: performs end-face cutting and hole drilling operations.
• Pneumatic system: executes clamping and pneumatic actuations.
• Blade support frame and feed system: supports the workpiece and executes feed motions.
• Lubrication system: ensures lubrication of moving pairs and extends service life.
• Dust extraction: handles dust generated during cutting/drilling.
• Electrical system: arranged in an independent cabinet for maintenance and protection.

Technical specifications
Processed workpiece diameter range: 2500–5000 mm
Workpiece spindle swing diameter: 6200 mm
Rotating spindle mounting diameter: 800φh6
Total machine power: 35 kVA
Total machine weight (excluding support parts): 35,000 kg

Key features / technical highlights

• Applicable workpiece diameter range: 2500–5000 mm.
• Workpiece spindle swing diameter: 6200 mm.
• Rotating spindle mounting diameter: 800φh6.
• Total machine power: 35 kVA.
• Total machine weight (excluding support parts): 35,000 kg.
• Two-stage worm gear indexing mechanism + servo motor to ensure precise indexed hole drilling.
• Equipped with pneumatic, lubrication, dust extraction and independent electrical cabinet for ease of maintenance and production reliability.
