Electric chamfering machine YKR9332

for automobilesautomatic

Overview

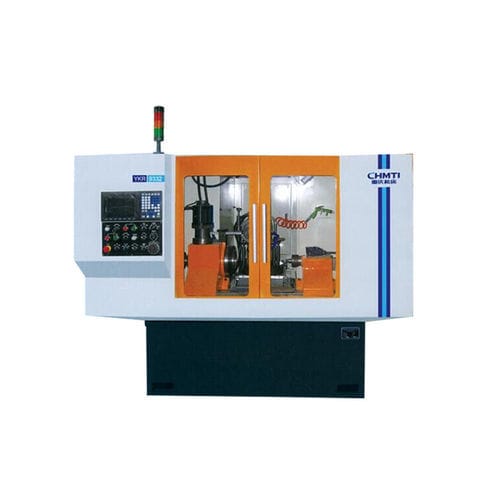

Machine for processing tapered teeth and external tapered teeth of automotive synchronizer sleeves. Designed for reliable performance and easy operation, suitable as supporting equipment for large and medium batch production and assembly-line manufacturing in the gear industry.

Detailed description

• This machine requires only a single setup to complete large-batch processing of tapered teeth. It allows fine adjustment of feed depth and forward/reverse rotation angle.
• Compared with traditional rolling machines, it delivers significant improvements in accuracy and surface roughness while offering high cost-effectiveness.

Technical specifications
Workpiece diameter range (external teeth): 50-320 mm
Number of teeth: 12-150 teeth
Gear module: 1-5 m
Maximum processing speed: 120 teeth/min
Chamfer angle (end-face angle): 0-25°
Arc angle: 0-30°
Max workpiece slide travel: 200 mm
Max tool post slide travel: 350 mm

Features/Specifications

• Applicable workpieces: tapered and external tapered teeth of automotive synchronizer sleeves and related gears
• Operation: single setup enables high-volume production; feed depth and rotation angle are finely adjustable
• Processing performance: superior precision and surface finish compared with traditional rolling machines; cost-effective solution
• Production capacity: suitable for large and medium batch production and assembly-line integration in the gear industry
• Main parameters: see table above (diameter range, tooth count, module, efficiency, angles, slide travels)
