Friction stir welding machine FSW16MG400

automaticfor profilesfor aluminum

Overview

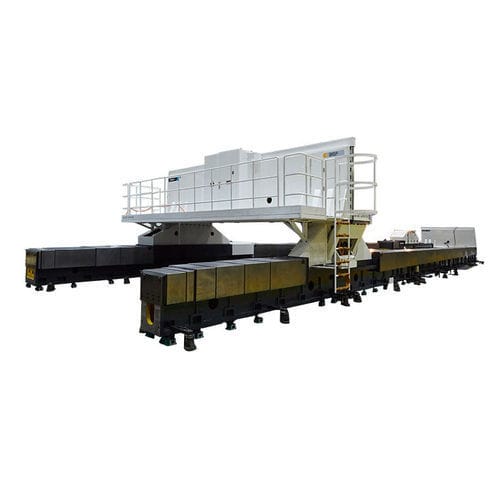

FSW16MG400 is a five-axis, four-link large CNC moving-gantry friction stir welding (FSW) machine. It is designed for industrial production of high-strength, high-quality aluminium welds and is particularly suited to rail vehicle body components and heavy truck body parts. The machine addresses strength and surface finish requirements of aluminium alloy welding and is a preferred solution for aluminium joining applications.

Main features

• Workpiece-fixed vertical layout: worktable/base, parts and fixtures are fixed while gantry columns provide horizontal feed to ensure high-quality friction stir welding
• User-friendly control interface
• Dual welding operation modes
• Dual-mode welding control system
• Wireless handheld control unit
• Centralized lubrication system
• Follower/guide wheels for tool support
• High-rigidity structural design

Key machine specifications
Machine main specifications | Model | FSW16MG400
X-axis effective travel mm | 12000
X-axis max speed mm/min | 6000
Y-axis effective travel mm | 4000
Y-axis max speed mm/min | 6000
Z-axis effective travel mm | 500
Z-axis max speed mm/min | 3000
Spindle max speed RPM | 3000
C-axis max speed RPM | 10

Welding objects
Welding objects | Welding materials | Aluminium profiles and plates
Part features | Sheets, flat profiles, single-sided ribbed profiles, hollow profiles
Joint types | Butt and lap joints

Welding requirements
Welding requirements | Welding thickness | Aluminium 1–16 mm
Weld shapes | Straight lines, planar 2D curves
Effective welding space | 12000 mm × 4000 mm × 500 mm (X/Y/Z)

Applications and industries
Suitable for rail transport (train car body components), heavy truck manufacturing (truck body components) and other sectors requiring high-strength, high-surface-quality aluminium welding.

Technical specifications

• Model: FSW16MG400
• Machine type: Five-axis, four-link large CNC moving-gantry friction stir welding machine
• Layout: Workpiece fixed; gantry columns provide horizontal feed (vertical layout)
• X/Y/Z effective travel: 12000 mm / 4000 mm / 500 mm
• X/Y/Z max speed: 6000 mm/min / 6000 mm/min / 3000 mm/min
• Spindle max speed: 3000 RPM
• C-axis max speed: 10 RPM
• Welding materials: Aluminium profiles and plates
• Welding thickness range: 1–16 mm (aluminium)
• Weld shapes: Straight lines, planar 2D curves; Joint types: Butt and lap
• Effective welding space: 12000 mm × 4000 mm × 500 mm (X/Y/Z)
• Operation features: User-friendly interface, dual welding operation modes, dual-mode welding control, wireless handheld unit, centralized lubrication, follower wheels, high-rigidity design
