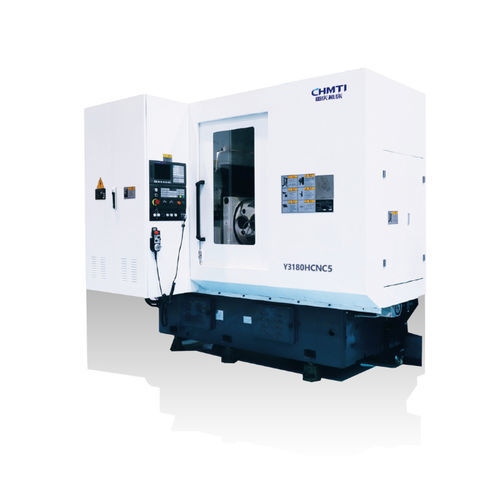

CNC gear-cutting machine Y3150E4~5/Y3180H4~5

horizontalfor bevel gear

Product overview
The machine is primarily intended for gear processing in passenger vehicles, commercial vehicles, marine machinery, construction machinery, agricultural machinery and lifting equipment. Machining accuracy can reach GB/T10095.1-2008 grade 7.

Main performance and features

• The machine is a 4- or 5-axis, four-axis simultaneous-link wet-cutting CNC gear hobbing machine.
• Standard configuration includes a domestic CNC system with an HMI and parametric programming; enables single clamping for multiple operations and repeated box-cycle machining.
• Equipped with a fully enclosed guard; optional oil-mist collection, automatic chip removal and automatic workpiece clamping devices are available.
• Capable of processing cylindrical spur gears, helical gears, small-cone gears, crowned gears, sprockets, splines and worm wheels.

Main technical specifications (table)
No - Main technical specification - Unit - Y3136CNC - YD3136CNC
1 - Maximum workpiece diameter - mm - 360 - 360
2 - Maximum module - mm - 16 - 16
3 - Max hob head swivel angle - ° - ±45° - ±45°
4 - Hob spindle max speed - r/min - 400 - 400
5 - Worktable max speed - r/min - 60 - 80
6 - Max cutter mounting size (Ø×L) - mm - Φ220×230 - Φ220×230
7 - Hob max axial travel - mm - 200 - 200
8 - Distance from hob center to worktable rotation center - mm - 70-320 - 70-320
9 - Distance from hob center to worktable surface - mm - 150-590 - 150-590

Notes / Other information
Product number examples: Y3150ECNC4~5 / Y3180HCNC4~5.

Characteristics / technical specifications

• Applicable industries: passenger vehicles, commercial vehicles, marine machinery, construction machinery, agricultural machinery, lifting equipment and other gear processing sectors.
• Machining accuracy: up to GB/T10095.1-2008 grade 7.
• Axes and configuration: 4- or 5-axis with four-axis simultaneous linkage.
• Cutting method: wet hobbing.
• CNC system: standard domestic CNC system with HMI and parametric programming.
• Clamping and cycles: enables single-clamp multi-operation and repeated box-cycle machining.
• Protection and optional devices: fully enclosed guard; optional oil-mist collector, automatic chip conveyor and automatic workpiece clamping.
• Processable workpiece types: cylindrical spur gears, helical gears, small-cone gears, crowned gears, sprockets, splines, worm wheels, etc.
• Typical models/specifications: see table above (main parameters for Y3136CNC / YD3136CNC).
