Chain conveyor SGBS
horizontaltransportchain drive

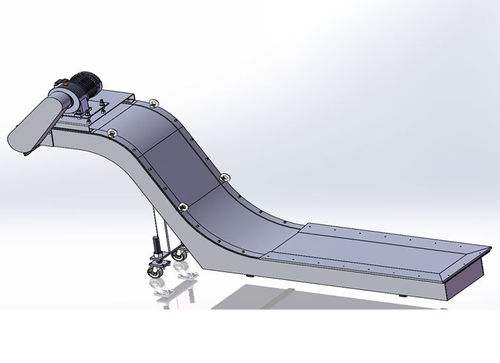

Chain conveyor - SGBS - Chongqing Machine Tool (GROUP) Co., Ltd. - horizontal / transport / chain drive

Add to favorites

Compare this product

Characteristics

Technology: chain
Form: horizontal
Function: transport
Drive mechanism: chain drive, motorized
Transported product: chip
Other characteristics: custom-made
Bulk throughput: 9 kg/min
(19.842 lb/min)

Description

Overview
This unit is a plate-type chip conveyor designed for CNC machine tools, machining centers and flexible production lines. It is intended for handling flake and granular magnetic steel chips.

Main features

Driven by a geared motor that transmits motion via sprocket and chain; bar magnets form the conveying surface and chips fall off at the discharge outlet.
Smooth chip removal, compact footprint, high throughput; stable transport, low noise and overload protection.
Motor power, reduction ratio and capacity can be adapted to application requirements.

Technical specifications

Product name: Plate-type chip conveyor
Model: SGBS
Applicable scope: CNC machine tools, machining centers and flexible production lines
Drive method: geared motor driving sprocket and chain; bar magnets as conveyor belt
Motor power: 0.2 kW
Reduction ratio: 1:90
Chip removal capacity: approximately 9 kg/min (depends on material and operating conditions)
Characteristics: smooth discharge, compact size, stable transport, low noise, overload protection
Dimensions (L×W×H): customizable to customer requirements
