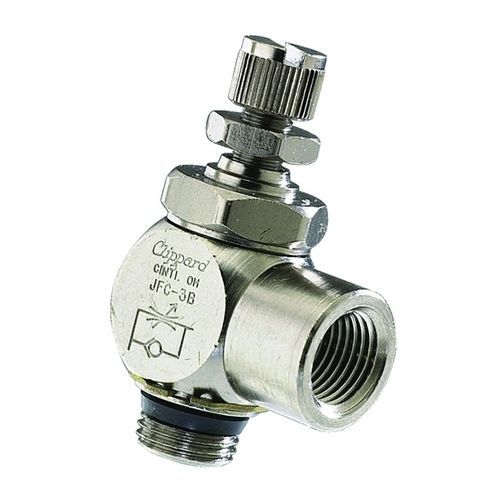

Flow control valve Flow Control Valves - MFC / JFC Series needlemanualfor water
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- needle
- Operation
- manual
- Function
- flow control
- Media
- for water, for oil, for air
- Body$
- threaded, large
- Other characteristics
- corrosion-resistant
- DN
0.125 in
- Pressure
100 bar
(1,450.4 psi)- Temperature
Max.: 230 °F
(110 °C)Min.: 32 °F
(0 °C)- Flow rate
310 l/s
(81.89 us gal/s)
Description
The JFC-2A Threaded Flow Control has a maximum operating pressure of 150psig, a temperature range of 32 to 230 degrees Fahrenheit and a 1/8" port. This device also has 10.5scfm airflow adjustable at 100psig.
It is a highly efficient and reliable device that has a large temperature range enabling it to be used in various applications.
