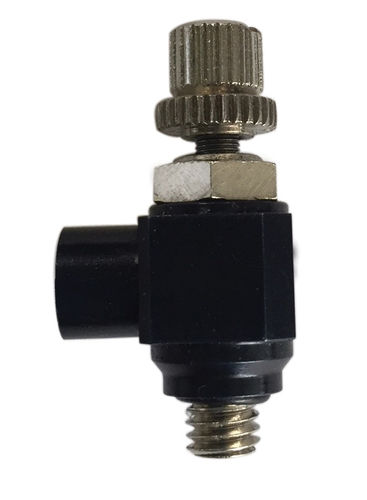

Manual valve MFC series

flow controlstainless steelplastic

These combination needle and check valve flow controls are typically used to control air flow from air cylinders, thereby controlling the speed at which the piston strokes, either while extending or retracting, depending on their location in the circuit. Flow control valves allow free flow from the inlet to the outlet past the needle and check valve. In reverse flow, from the outlet to the inlet, the check valve is sealed and the flow must now pass through the metered passage controlled by the tapered adjustment needle. Featues and Benefits Pre-applied sealant on male NPT outlet port Accessible hex wrench flats on stem simplifies installation Inlet is a swivel port that can be rotated 360° for optimum port alignment Models available with flow adjustment by recessed screwdriver slot or knurled knob Captivated needle cannot be adjusted out of the stem A super fine 48 pitch needle thread provides the finest adjustment available Built of corrosion-resistant materials for long life
