piston check valve / flow-control / brass / needle
JFC-4K

Add to MyDirectIndustry favorites
Compare this product
piston check valve / flow-control / brass / needle piston check valve / flow-control / brass / needle - JFC-4K
{{requestButtons}}

Characteristics

  • Type:

    piston

  • Applications:

    flow-control

  • Material:

    brass

  • Other characteristics:

    needle

  • Pressure:

    150 psi

Description

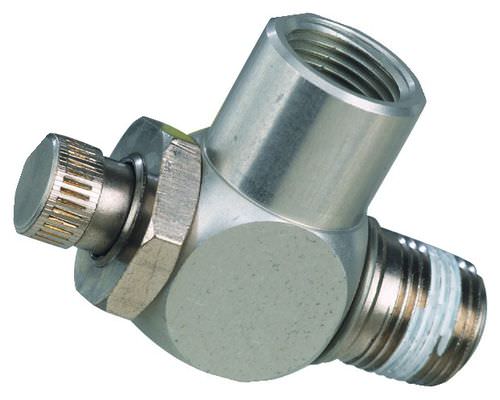

The JFC-4K Threaded Flow Control features a highly-durable anodized aluminum body in addition to tightfitting Buna-N seals. This device is suitable for use with air, oil and water, and is fitted with an electroless nickel-plated brass needle and stem. JFC-4K devices are combination needle and check valve flow controls, and are generally utilized for the control of air cylinders. Specifically, the devices control piston-stroke speed, either extending or retracting the component depending on circuit location.

The J-Series Flow Control Valves support one-directional free flow and the needled valve is used to monitor the opposite directional flow. Such models feature either a 1/4" NPT (JFC-4) or a 3/8" NPT (JFC-5) male threaded outlet, a recessed screwdriver slot (R) or knurled knob flow adjustment needles (K) and female NPT or Push-Quick inlets. These are high-quality devices that are both extremely efficient and economical.
