Automatic filling and capping machine START LINE

for viscous liquidsindustrial

Overview

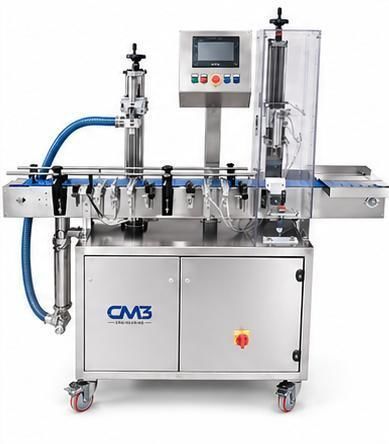

START LINE is an automatic filling and capping machine designed for handling liquid and viscous products. It is suited to companies seeking an entry level of process automation or contract manufacturing. The machine is compact and configurable to packaging requirements, allowing simple format changeovers and optional manual support or manual insertion.

Key features

• Compact and configurable for small to larger formats (miniatures to jerry cans)
• Stainless steel support structure on wheels for easy repositioning
• Accurate, repeatable and hygienic dosing, including hot product dosing up to 120 °C
• Modular capping station compatible with multiple cap types
• Touch screen control with integrated remote assistance and multilingual software

Construction and mobility
The support frame is entirely stainless steel and mounted on wheels for movement within production areas or laboratories. The layout can be customised to handle very small containers or larger formats such as jerry cans.

Dosing system
The dosing system provides precision and repeatability while ensuring hygienic handling. Filling and suction speeds are adjustable to match product viscosity and process requirements. The system supports dosing of hot products up to 120 °C.

Capping station
The capping module is modular and configurable to handle screw caps, pressure caps, twist-off caps, dispensers, trigger caps and other customised closure systems.

Control and software
Operator interface is via a touch screen panel with integrated remote assistance. Software is multilingual and can store multiple processing recipes, manage component handling times and activate washing cycles.

Integration and accessories
The line can be complemented with additional equipment such as a rotating container loading table, a labelling machine or other accessories to match production needs.

Application sectors

• Food
• Cosmetic
• Chemical

Technical specifications

• Model: START LINE
• Type: Automatic filling and capping machine for liquid and viscous products
• Construction: Stainless steel support structure
• Mobility: Wheels for repositioning
• Formats: Configurable from mini formats to jerry cans
• Dosing: High accuracy and repeatability; adjustable filling and suction speeds
• Hot product handling: Up to 120 °C
• Capping: Modular station for multiple cap types (screw, pressure, twist-off, dispenser, trigger, etc.)
• Interface: Touch screen with integrated remote assistance
• Software: Multilingual; stores recipes; manages handling times; controls washing cycles
• Changeover: Simple format adjustments; supports manual insertion where required
• Optional accessories: Rotating loading table, labeller and other add-ons
