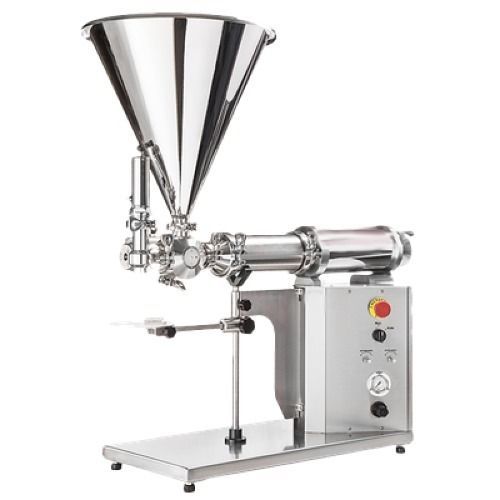

Oil dosing dispenser

for medium-viscosity medialiquidsvolumetric

Overview
CM3 Engineering bench-top volumetric dosing units provide piston-based volumetric dosing for liquids and semi-dense products. They are suitable for filling containers such as plastic bottles, PET, tins and other receptacles, and are commonly used for oils, chemical and food products.

Key features

• Volumetric piston dosing for accurate, repeatable fills
• All product-contact parts in AISI 316 stainless steel for hygiene and corrosion resistance
• Suitable for liquids and semi-dense products across food, chemical, cosmetic and pharmaceutical sectors
• Controls for pressure, delivery speed and suction speed; manual or automatic operation
• Customizable and adjustable for product temperature and viscosity

Available models

• Single-cylinder: single dosing plunger that draws and dispenses the operator-selected quantity
• Double-cylinder: two dosing plungers that can operate alternately or simultaneously as required by production

Dispensing valves and handling of different product densities

• Valve options for liquid and semi-dense products
• Rotating valves (or rotary feeders) for dense products
• 2-way anti-drop valves to prevent dripping
• Typical valve sizes: 1/2" valve for liquids; 1" 3-way valve for certain liquid applications
• All valves removable via tri-clamp coupling for quick interchange and cleaning, enabling use with different viscosities

Options and special equipment

• Anti-drip devices
• Immersion nozzles for foaming products
• Heating units, mixing units and pressure units for specific process needs
• Specialized cylinders and components for aggressive, hot or alcohol-containing products

Application sectors

• Food
• Cosmetic
• Chemical

Technical specifications

• Construction: product-contact parts in AISI 316 stainless steel
• Suitable for: oils, chemical and food products in plastic bottles, PET, tins and other materials
• Models: single-cylinder and double-cylinder volumetric units
• Controls: pressure monitoring, delivery speed and suction speed control; manual or automatic operation
• Customization: adjustable for temperature and viscosity
• Valves: 1/2" and 1" (3-way) options; solutions for liquid, semi-dense and dense products; 2-way anti-drop valves
• Valve coupling: tri-clamp for easy removal and cleaning
• Options: anti-drip, immersion nozzles for foams, heating/mixing/pressure units, cylinders for aggressive/hot/alcohol products
