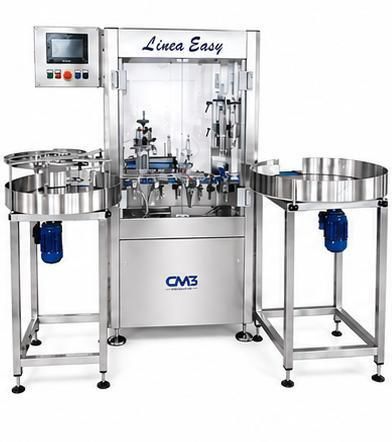

Fully-automatic filling and capping machine EASY LINE

for liquidsmonoblocrotary

Overview
The fully automatic monoblock EASY LINE full automatic automates filling and capping operations for liquid products. Configurable for liquids including foaming, semi-dense and dense products, it handles glass and plastic containers while minimising footprint. The machine features rotating loading/accumulation tables, automatic cap loading and up to two dosing heads, with a maximum capacity of 1,800 pieces per hour. The dosing system ensures accuracy, repeatability and hygiene and allows precise adjustment of filling and suction speeds; it is also capable of dosing foaming or hot products up to 120°C.

Capabilities and operation

• Fully automatic filling and capping monoblock
• Adaptable to liquids: foaming, semi-dense, dense
• Suitable for glass and plastic containers
• Rotating loading and accumulation tables to optimise line flow
• Automatic cap loading system for continuous operation
• Up to two dosing heads for increased output and flexibility
• Adjustable dosing parameters for filling and suction speed
• Cap handling via pneumatic and motorised orientation and screwing systems
• Control via touchscreen panel with integrated remote assistance and multilingual software
• Software features: recipe storage, component handling time management and wash-cycle activation
• Designed for easy format changes and cleaning; suitable for multiple product runs per day
• Expandable with customised systems to complete the packaging cycle

Application sectors

• Food
• Cosmetic
• Chemical

Technical specifications

• Commercial name: EASY LINE full automatic
• Machine type: Fully automatic filling and capping monoblock (rotary)
• Handled product types: liquid, foaming, semi-dense, dense
• Compatible containers: glass, plastic
• Loading: rotating loading and accumulation tables
• Capping: automatic cap loading; pneumatic and motorised orientation and screwing systems
• Dosing: up to 2 dosing heads; adjustable filling and suction speed; high accuracy, repeatability and hygiene
• Maximum dosing temperature: up to 120°C for hot or foaming products
• Production capacity: up to 1,800 pieces per hour (depending on product and configuration)
• Control: touchscreen panel, integrated remote assistance, multilingual software with recipe storage and wash-cycle management
• Maintenance and changeover: designed for quick format changes and easy cleaning
• Customisation: modular and expandable to integrate additional equipment for complete packaging lines
