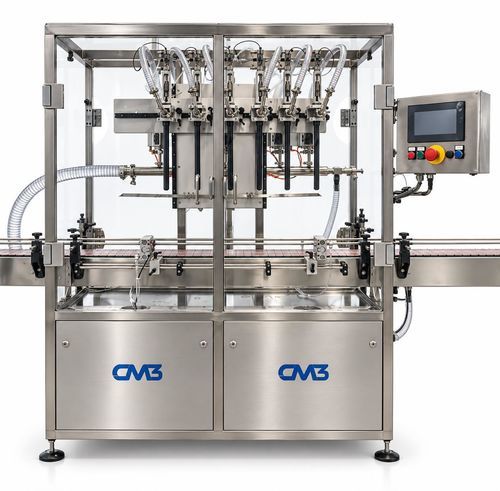

Food dosing and packing machine MASTER LINE

for chemical productsfor cosmetic products

Product overview
MASTER LINE is a multi-head dosing and filling line engineered for industrial high-throughput production. The standard 6-filling-head configuration raises output while ensuring precise volumetric control and repeatable dosing across production cycles. Its modular architecture simplifies customization and integration with upstream and downstream packaging equipment.

Key capabilities

• Modular configuration adaptable to production rates, container formats and process requirements.
• Compatibility with volumetric dosers, including optional servo-assisted units for fine volume control and high repeatability.
• Option to fit pump-based dosing systems with mass or magnetic flow meters to handle a wide range of viscosities and physical product properties.
• Designed for continuous operation with accessible maintenance points to support high productivity.

Integrated packaging components (possible)

• Linear or rotary capping units (selected by required speed)
• Heat-sealing units
• Induction sealing systems
• Single- or multi-head labelling machines
• Checkweighers and other end-of-line equipment

Application sectors

• Food
• Cosmetics
• Chemicals

Technical specifications

• Commercial name: MASTER LINE
• Standard configuration: 6 filling heads (multi-head dosing)
• Dosing technologies: volumetric dosers (servo-assisted optional); pump dosing with mass or magnetic flow meters
• Suitable for products with varying viscosities and physical characteristics
• Modular and customizable design for integration into existing packaging lines
• Compatible with capping, sealing, labelling and checkweigher modules
