Automatic filling and capping machine START&CAPPING

for liquidsrotaryvolumetric

Overview

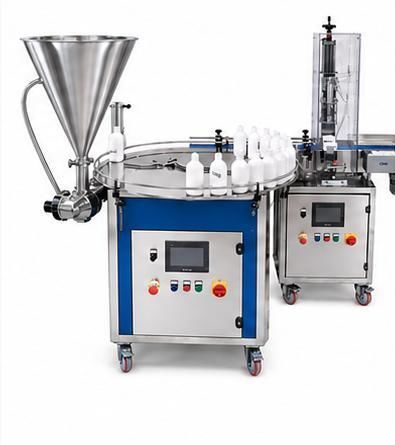

START&CAPPING is an automatic combined filling and capping machine designed to complete the full packaging cycle for liquid and viscous products in containers of various shapes and sizes. It integrates the START module (volumetric dosing on a rotary table) and the CAPPING module (belt-fed capping station) into a single modular system, suitable for small-batch production and quick format changes.

Construction and main components

• Full stainless steel construction for hygiene and chemical resistance
• Mobile base with wheels supporting the rotary table for easy repositioning
• Volumetric dosing unit capable of micro and macro dosages
• Conveyor belt with integrated screwing/capping station

Dosing system

• High accuracy and repeatability with hygienic design
• Precise adjustment of filling and suction speeds
• Capable of dosing hot products up to 120 °C

Capping station

• Customisable to handle screw caps, pressure caps, twist-off, dispensers, trigger caps and other closure types

Control and software

• Touchscreen HMI with integrated remote assistance
• Multilingual software with recipe storage for repeatable setups
• Management of handling timings and programmable washing cycles
• Option for mobile configuration and independent control panels for START and CAPPING modules to use as stand-alone units

Applications

• Food and beverage
• Cosmetics and personal care
• Chemicals and industrial liquids

Technical specifications

• Machine type: Automatic combined filling and capping system (START + CAPPING)
• Materials: Stainless steel construction
• Base: Mobile base with wheels (optional)
• Rotary table: Supports dosing and handling modules
• Dosing: Volumetric dosing for micro and macro dosages; adjustable filling and suction speeds
• Temperature capability: Dosing of hot products up to 120 °C
• Conveyor: Belt with integrated screwing/capping station
• Capping compatibility: Screw caps, pressure caps, twist-off, dispensers, trigger caps (customisable)
• Control: Touchscreen HMI, integrated remote assistance, multilingual software, recipe memory
• Modularity: Independent START and CAPPING control possible for stand-alone use
• Suitable for: Small-batch production and easy format changeovers
