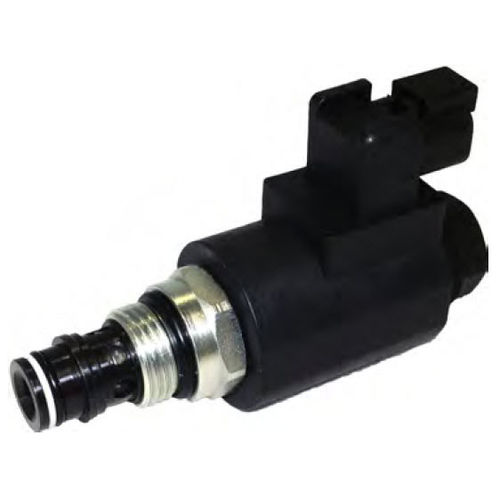

Pilot-operated solenoid valve SVPxx -NCR Series

2-waynormally closedhydraulic

This is a normally-closed, pilot-operated, poppet-type 08-size solenoid valve with free reverse flow. When de-energized, the valve acts as a check valve, allowing flow from port 1 to port 2, and blocking flow from port 2 to port 1. When energized, the valve’s poppet is shifted and allows flow from port 2 to port 1, and from 2 to 1. This valve is available with an optional pull-type manual override. Applications This valve is designed for low leakage applications and can be used in a circuit with a single acting cylinder to control motion, provide load holding or as a general purpose diverter or dump valve. The SVP08-NCR can operate at an inlet pressure of 315 bar on port 2 for 600,000 cycles.
