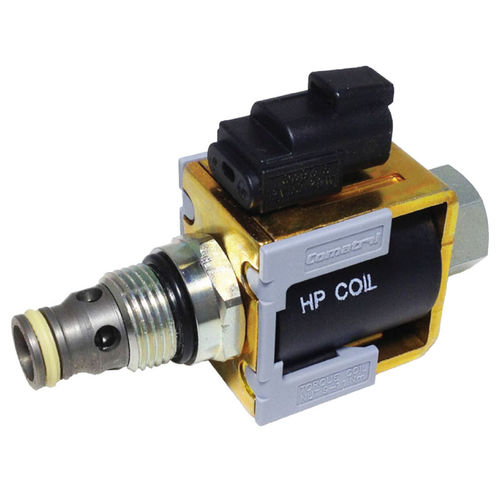

Pilot-operated solenoid valve HSVPxx-NCR Series

2-wayNChydraulic

This is a normally-closed, pilot-operated, poppet-style 12-size solenoid valve. When de-energized, the HSVP12-NC acts as a check valve allowing flow from port 1 to port 2, and blocking flow from port 2 to port 1 . When energized, the valve’s poppet is shifted and allows flow from port 2 to port 1, and severely restricts from port 1 to port 2. Applications The HSVP12-NC is designed to function as load holding or blocking valve in applications where low internal leakage is required. In load holding applications, the circuit should be designed so that the de-energized state is the position that is holding the load. This solenoid valve is a technical replacement for CP501-1.
