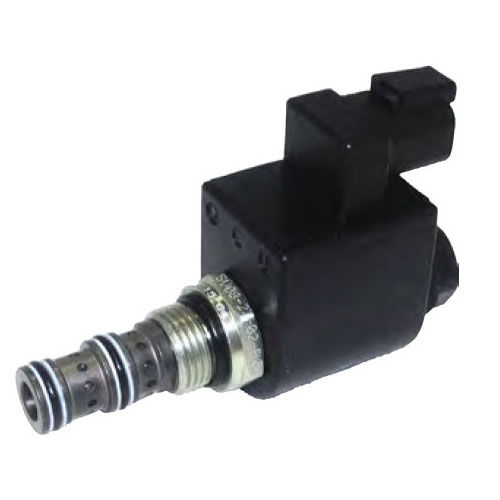

Direct-operated solenoid valve SVxx-23-04 Series

3-wayhydraulicspool type

Solenoid Valve, Spool Type, 2-Position, 3-Way, 08 size. When de-energized, the SV08-23-04 allows flow from port 3 to port 2, blocking port 1. When energized, ports 2 and 1 are connected, blocking port 3. Follow the ‘Operating Envelope’ limits to ensure shifting of the valve during operation. Applications These spool-type valves are primarily used in mobile and industrial applications for controlling the direction of the flow in a circuit like a single-acting cylinder, clutch, brake, circuit selector valve, or pilot for a large directional spool valve. Solenoid spool-type valves are direct acting and respond quickly to coil voltage input. Spool valves will have some leakage due to spool clearance, so if your application requires no leakage at the working port(s), apply a low leakage poppet valve(s), like PO check valve, counterbalance valve, etc., in addition to this solenoid valve. This valve can operate with an inlet pressure of 315 bar for 400,000 cycles.
