Heat gun with electronic temperature control Hot Wind 200/300

Product description
Hot Wind 200/300 delivers a directed stream of hot air placed directly between the pad and the workpiece. In pad printing this allows partial drying of the ink during printing to improve release from the pad, especially in cold environments or for large-format prints requiring multiple colour overlays.

Installation and versions

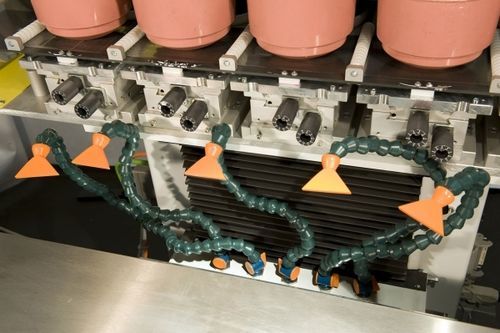

The unit is inserted into the machine support and fitted with articulated tubes to aim the air jet precisely. An optional portable version is available and can be adapted to Comec Italia pad printing machines.

Features

• Directs a controlled stream of hot air between pad and workpiece
• Facilitates partial ink drying during printing to improve pad release
• Articulated tubes for targeted airflow
• Adjustable air jet and heat intensity
• Insertable into machine support; portable version available
• Compatible with Comec Italia pad printing machines

Related accessories

• AUR 360° — rotating workpiece support for 360° printing of spherical objects
• RR and RRR devices — options for 2‑ or 3‑colour pad printing machines
• Pad cleaning systems — automatic, programmable cleaning for pads
• Ink pump — 1 L reservoir pump for ink supply
• Pick & place devices — automated loading and unloading of parts
• Master Flow — high-performance hot air distributor for post-print drying
• Hot Wind portable — portable version of the Hot Wind 200/300

Technical specifications

• Model: Hot Wind 200/300
• Function: hot air stream for partial ink drying between pad and workpiece
• Mounting: inserted into machine support; portable version available
• Air direction: articulated/adjustable tubes for targeted airflow
• Controls: air jet control and heat intensity adjustment
• Temperature: adjustable (up to 200 °C typical)
• Power supply: 220/110 V
• Typical use cases: cold environments; large-format prints with multiple colour overlays
