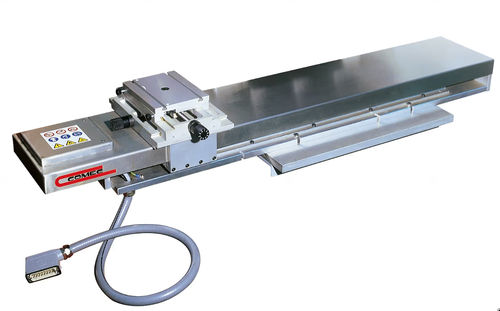

Linear feeder stepmotor-drivendigital
Add to favorites
Compare this product
Characteristics
- Type
- linear, step
- Operating mode
- motor-driven, electronically controlled, digital, single-line
Description
Description
Linear transfer single jig model STEP offers programmable indexing from the machine keypad. It is driven by a brushless motor with plate movement via a ball screw and is supplied with a plate to house the workpiece carrier support featuring an orthogonal slide, XY adjustments and 5° rotation. Predisposed for application with T‑slot fixtures, it is suitable for multi‑color pad printing machines with or without independent pads. The STEP jig speeds up and simplifies pad printing operations and can be connected to pick & place devices and pre‑treatment units such as corona, plasma or flame treatment for complete process automation.
Technical specifications
Linear transfer single jig model STEP offers programmable indexing from the machine keypad. It is driven by a brushless motor with plate movement via a ball screw and is supplied with a plate to house the workpiece carrier support featuring an orthogonal slide, XY adjustments and 5° rotation. Predisposed for application with T‑slot fixtures, it is suitable for multi‑color pad printing machines with or without independent pads. The STEP jig speeds up and simplifies pad printing operations and can be connected to pick & place devices and pre‑treatment units such as corona, plasma or flame treatment for complete process automation.
Technical specifications
- Type: Linear transfer single jig (model STEP)
- Step programming: Programmable from machine keypad
- Motor: Brushless motor
- Plate movement: Ball screw
- Plate: Supplied with plate for housing the workpiece carrier support
- Slide: Orthogonal slide
- Adjustments: XY adjustments
- Rotation: 5° rotation capability
- Predisposition: Prepared for application with shelf‑slot "T"
- Compatibility: Suitable for multi‑color machines, with or without independent pads
- Automation: Can be connected to pick & place devices
- Pre‑treatment compatibility: Integrable with corona, plasma or flame treatment devices
