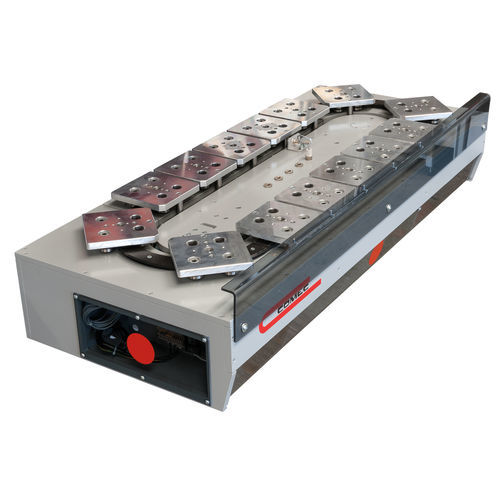

Rotary feeder Elliptical

pneumaticautomatedelectronically controlled

Description
Elliptical programmable feeder for pad printing machines, driven by a brushless motor and equipped with multiple jigs and pneumatic plate locking for accurate positioning. Available with 12, 14 or 16 stations and a pitch (step) from 127 to 280 mm, the feeder's functions are controlled via the host machine's keypad. It is designed to increase production throughput and simplify operation on 4- or 5-color pad printing lines, with or without independent pads. The feeder can be integrated with pick & place systems and pre-treatment units such as corona, plasma or flame for automated process lines.

Key features / Technical specifications

• Programmable elliptical feeder for pad printing machines
• Brushless motor drive
• Multiple jigs for various part geometries
• Pneumatic locking of plates in the printing position for repeatable accuracy
• Available with 12, 14 or 16 stations
• Pitch (step) adjustable from 127 to 280 mm
• Functions controllable via the connected machine's control keypad
• Suitable for 4- or 5-color pad printing machines, with or without independent pads
• Compatible with pick & place systems and pre-treatment units (corona, plasma, flame)
