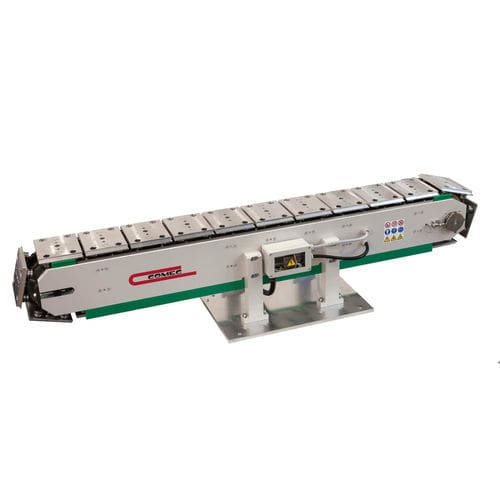

Linear feeder

pneumaticautomaticmotorized

Product overview Programmable linear feeder with multiple jigs and pneumatic locking of the plates in print position. The number of jigs is configurable according to machine type and part size. Indexing is programmable from 127 mm up to 356 mm via the machine control keyboard. Drive is provided by a brushless motor with chain movement, combined with pneumatic locking and plug insertion of the plates at the print stations to ensure precise positioning. Plates run on two linear guides and are mounted on recirculating ball bearings.

Main features

• Programmable linear indexing
• Multiple jigs with configurable quantity according to machine and part size
• Pneumatic locking of plates in print position
• Brushless motor drive
• Chain movement with pneumatic locking and plug insertion of plates in print stations
• Plates run on two linear guides with recirculating ball bearings

Integration and compatibility

• Designed for 4- or 5-color pad printing machines
• Compatible with machines with or without independent pads
• Can be integrated with pick & place systems for full automation
• Compatible with surface pre-treatment equipment such as corona, plasma or flame treatment

Technical specifications

• Indexing (step): 127 mm to 356 mm (programmable via machine control keyboard)
• Drive: brushless motor
• Movement: chain movement with pneumatic locking
• Plate locking: pneumatic locking in print position; plug insertion of plates in print stations
• Guides and bearings: two linear guides; plates mounted on recirculating ball bearings
• Jigs: variable number depending on machine and object size
• Recommended use: 4- or 5-color pad printing machines; compatible with independent pads
• Automation: possible connection to pick & place devices
• Surface pretreatment compatibility: corona, plasma, flame treatment
