Horizontal rotary table

markingelectromechanicalpneumatic

Product description

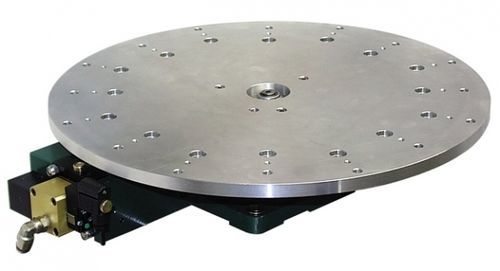

Rotary table for pad printing available in electropneumatic and electromechanical versions. The unit is composed of a wrought aluminum disk with mounting holes for fastening the workpiece carrier and is designed for integration into 1- or 2-color pad printing lines.

Versions
Electropneumatic version: available with 4, 6, 8 or 12 steps and diameters up to 800 mm. Electromechanical version: available from 2 to 20 steps and diameters up to 2100 mm.

Application
Designed to increase production cycle efficiency and simplify handling in pad printing operations, suitable for serial printing on rigid and semi-rigid substrates in industrial production.

Integration
Can be interfaced with pick & place systems and with pre-treatment equipment such as corona, plasma or flame treatment to improve ink adhesion and process reliability.

Technical specifications

• Material: wrought aluminum disk with mounting holes for the workpiece carrier
• Electropneumatic version: 4, 6, 8, 12 steps; diameter up to 800 mm
• Electromechanical version: 2 to 20 steps; diameter up to 2100 mm
• Intended use: 1 or 2 color pad printing machines
• Compatible with: pick & place devices; corona, plasma or flame pre-treatment devices
