Video vision inspection system

cameraautomaticvideo

Product description

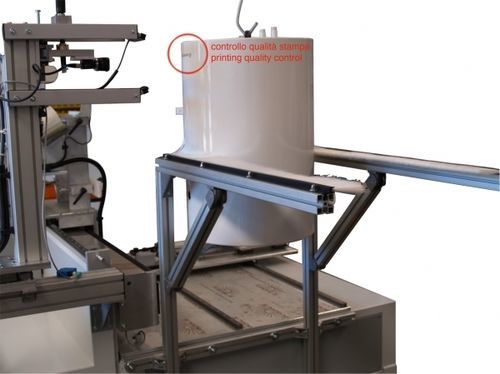

Camera-based inspection units can be mounted on automatic pad printing machines or integrated into production lines where operators cannot inspect every piece. The system inspects printed parts in-line, identifies non-compliant items via image analysis and flags them for removal.

Related accessories

• AUR 360°: workholding device for 360° printing of spherical objects.
• RR and RRR devices: rotation/registration accessories for 2- or 3-colour pad printing machines.
• Pad cleaning system: automatic programmable cleaning unit for pads.
• Ink pump (1 L): pump with 1-l container to feed ink to the ink cup.
• Pick & place device: for automatic loading and unloading of parts to be printed.
• Master flow: high-performance hot-air distributor for drying printed parts.
• Hot wind portable: portable hot-air unit directing warm air between pad and part.
• Hot wind 200/300: fixed hot-air units for accelerated drying (models 200/300).

Technical specifications

• Application: in-line quality inspection for pad printed parts on automatic machines and production lines.
• Vision system: industrial camera(s) with configurable lighting and image analysis.
• Software: dedicated inspection software for automatic defect detection and sorting.
• Ejection: mechanical or compressed-air ejector for removal of non-compliant pieces.
• Integration: designed for mounting on automatic pad printing machines or integration into production lines.
• Customization: configurable solutions available to meet specific production requirements.
