Positioning control unit

vacuumwith displaydigital

Product description

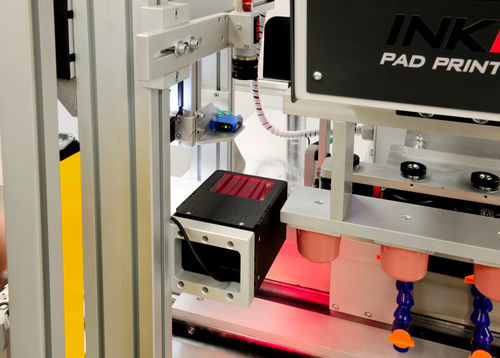

Composed of an industrial camera and a rotating centering table driven by a brushless motor, the position control device aligns and centers workpieces when consistent manual loading is not possible. The device software is installed on a PC and operated from the machine control monitor. The rotary centering table ensures absolute printing precision of ±0.05 mm. A vacuum holding system secures the workpiece during printing and pad pressure. Typical uses include printing medals, coins and other unsecured parts in pad printing processes.

Main features

• Camera-based detection and alignment of workpieces
• Rotating centering table with brushless motor drive
• Software installed on PC and controlled via machine monitor
• Absolute printing precision: ±0.05 mm
• Vacuum system for reliable workpiece immobilization during printing
• Adapted for small, circular or irregular parts that cannot be fixed to feeders

Technical specifications

• Detection method: industrial camera for position recognition
• Centering mechanism: rotating table with brushless drive
• Control interface: PC software + control monitor integration
• Printing precision: ±0.05 mm (absolute)
• Workpiece holding: vacuum-based clamping
• Applications: pad printing of medals, coins, jewellery components and other unsecured workpieces
