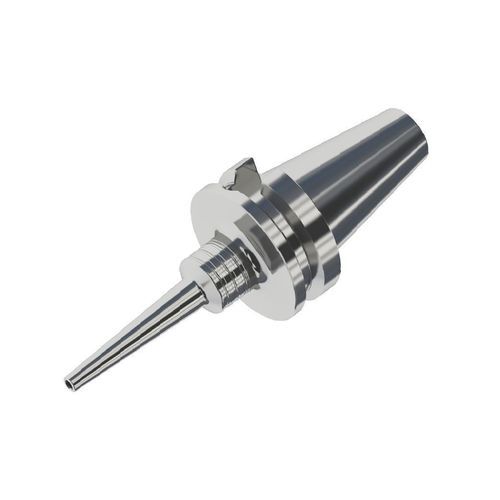

BT tool holder

shrink fitfor machiningfor precision engineering

Product Overview

• Dynamic balance: G2.5 at 25,000 rpm; G1.0 at 60,000 rpm
• High precision: extra-long design; tool holder runout ≤0.001 mm; ≤0.003 mm at 4×D
• Increased clamping force: up to 2× DIN standard
• Corrosion-, wear- and rust-resistant: specialized surface treatment
• Minimal distortion after heat treatment: key groove milled post-heat treatment
• Durability: up to 3,000 clamping cycles using special alloy steel with Conprofe Shrink-Fit Machine

Working Principle
Clamping relies on thermal expansion/contraction. Heat the tool holder with the Shrink-Fit unit, insert the cutting tool while the inner bore is expanded, then allow cooling so the holder contracts and clamps the tool directly.
The system clamps the cutting tool without mechanical connectors such as collets or nuts, making it suitable for high-speed machining that requires precise runout, dynamic balance and clamping rigidity.

Application Cases
Designed for clamping a range of cutting tools used in aerospace, semiconductor fabrication, medical device machining and other industrial high-precision applications.

Technical Parameters
Item (Unit: mm) — Standard Type — Ultra Slim Type
Clamping Diameter d — 4-10 — 4-10
D — 10-22 — 7-13
D1 — 25-36 — 25-36
L — 75-120 — 95-180
M — 22-67 — 42-97
Min. Clamping Length E — 12-30 — 12-30
Wall Thickness t — 3-6 — 1.5

Characteristics / Technical Specifications

• Clamping Diameter (d): Standard 4-10 mm; Ultra Slim 4-10 mm
• D: Standard 10-22 mm; Ultra Slim 7-13 mm
• D1: 25-36 mm (both types)
• L (Length): Standard 75-120 mm; Ultra Slim 95-180 mm
• M: Standard 22-67 mm; Ultra Slim 42-97 mm
• Minimum Clamping Length (E): 12-30 mm (both types)
• Wall Thickness (t): Standard 3-6 mm; Ultra Slim 1.5 mm
• Balance rating: G2.5 at 25,000 rpm; G1.0 at 60,000 rpm
• Runout accuracy: ≤0.001 mm (tool holder); ≤0.003 mm at 4×D
• Clamping force: up to 2× DIN standard
• Durability: up to 3,000 clamping cycles with special alloy steel and Conprofe Shrink-Fit Machine
• Surface: special treatment for corrosion, wear and rust resistance
