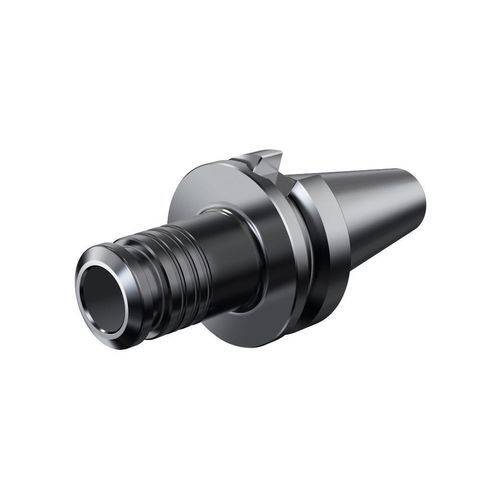

BT tool holder

collethigh-speedanti-vibration

Product

• Low radial runout (3×), suitable for high-precision and high-speed machining
• High clamping torque: approximately 2× that of ordinary tool holders
• High concentricity and repeatable clamping
• Long service life: approximately 20,000 clamping cycles (estimated 2-5 years of normal use)
• Effective damping and vibration reduction to improve surface finish and extend tool life
• One-button clamping operation with a dedicated machine

Application Cases
Suitable for clamping various cutting tools in aerospace, semiconductor, medical and other industrial sectors.

Technical Parameters
Item (Unit: mm) — BT Series / BBT Series
Max. clamping diameter (d): 4-25 / 4-25
D: 10-50 / 10-50
L: 50-120 / 50-120
Collet: PC6-PC32 / PC6-PC32

Characteristics / Technical specifications

• Series: BT Series
• Max. clamping diameter (d): 4-25 mm
• Diameter (D): 10-50 mm
• Length (L): 50-120 mm
• Compatible collets: PC6-PC32
• Radial runout (3-times): low, suitable for high-precision machining
• Clamping torque: approx. 2× ordinary tool holders
• Clamping cycles: approx. 20,000 (estimated 2-5 years normal use)
• Damping and vibration reduction for improved surface finish and extended tool life
• One-button clamping operation with a dedicated machine
