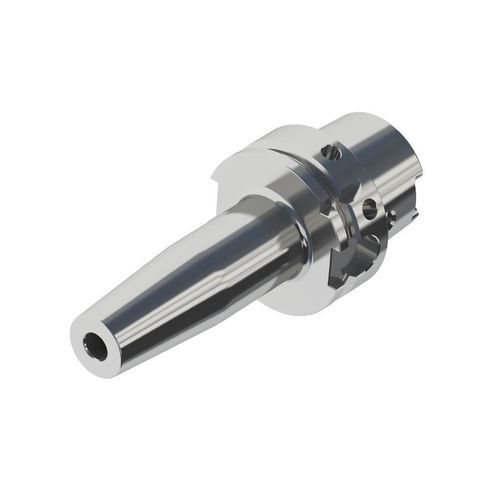

HSK tool holder

shrink fitstandardslim

Product Overview

• High dynamic balance: balanced to G2.5 at 25,000 rpm; balanced to G1.0 at 60,000 rpm
• High precision: extra-long design; tool holder runout ≤0.001 mm; runout accuracy within ≤0.003 mm at 4×D
• High clamping force: clamping force approximately 2× DIN standard
• Corrosion-proof, wear-resistant and rust-proof: special surface treatment
• High accuracy with no distortion from heat treatment: key groove fine-milled after heat treatment
• Durable clamping cycles: up to 3000 clamping operations with Conprofe Shrink-Fit Machine

Working Principle
Clamping is based on thermal expansion and contraction. The tool holder is heated with a Shrink-Fit unit and the cutting tool is inserted while the inner bore expands. After cooling the holder contracts and clamps the tool directly without mechanical components such as collets or nuts. This design is ideally suited for high-speed machining requiring high accuracy, dynamic balance and clamping rigidity.

Application Cases
Suitable for clamping various cutting tools in aerospace, semiconductor, medical and other industrial machining applications where high precision and balance are required.

Technical Parameters

• Standard Type: Clamping diameter d: 4–20 mm; D: 15–44 mm; D1: 20–53 mm; L: 60–160 mm; Min. clamping length E: 15–48 mm; Max. clamping length H: 40–95 mm (unit: mm)
• Slim Type: Clamping diameter d: 4–12 mm; D: 10–18 mm; D1: 14–30 mm; L: 65–120 mm; Min. clamping length E: 15–42 mm; Max. clamping length H: 45–95 mm (unit: mm)

Features / Technical Specifications

• Dynamic balance rating: G2.5 @ 25,000 rpm; G1.0 @ 60,000 rpm
• Runout: ≤0.001 mm (tool holder); ≤0.003 mm at 4×D
• Clamping force: approximately 2× DIN standard
• Material: alloy steel (as specified for this model)
• Surface treatment: corrosion-proof, wear-resistant and rust-proof special treatment
• Key groove: fine-milled after heat treatment to avoid distortion
• Clamping cycles: up to 3000 times with Conprofe Shrink-Fit Machine
• Design variants: Standard Type and Slim Type with dimensions listed above
