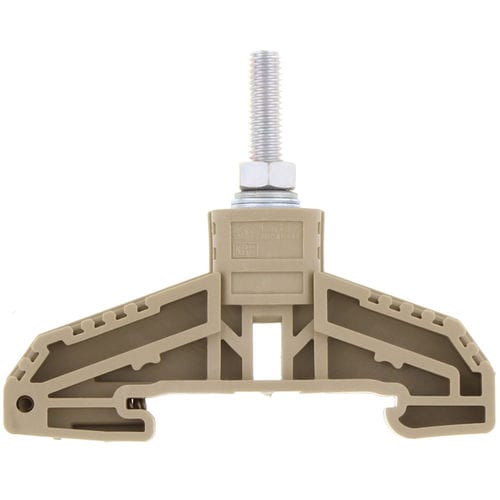

DIN rail-mounted terminal block HSK

studpowerhigh-current

High-power stud terminal, Stud connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 16 mm², Width: 13 mm, Colour: Beige Length: - 67 mm Length with TW/ADH: - 67 mm Width: - 13 mm Height TS 35/7.5: - 55.5 mm Height TS 35/7.5 with TW/ADH: - 58 mm Rated voltage: - 1000 V Rated current: - 76 A Rated cross-section: - 16 mm² Rated impulse voltage: - 8 kV Overvoltage category: - III Contamination degree: - 3 Maximum power dissipation for nominal condition: - 2.43 W Connection principle: - Stud connection Connection position: - Top Connections: - 1 Number of terminals per level: - 1 Number of levels: - 1 Wire cross-section AWG, min.: - 10 Wire cross-section AWG, max.: - 1/0 Bolt head: - Hexagon Bolt thread: - M 5 Tightening torque, min.: - 2 Nm Tightening torque, max.: - 4 Nm Contact wire range: - ≤ 16 mm²
