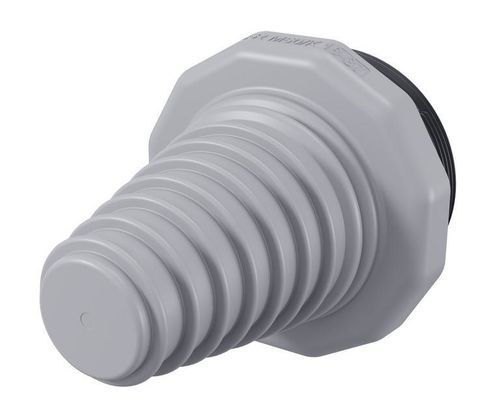

IP54 cable entry plate KES-R M50/K 18-37 GR

IP66UL94 V-0for cables

Product overview

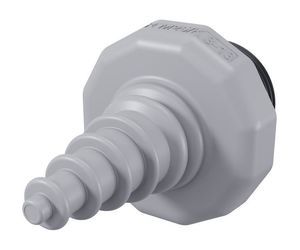

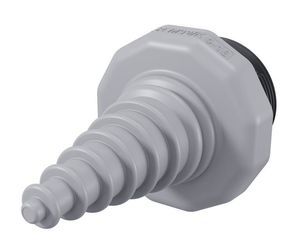

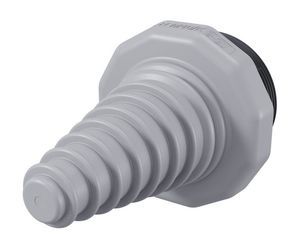

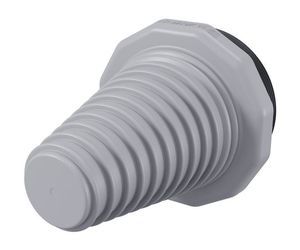

Round cable entry M50 with cone for non-assembled cables. For cable diameters 18–37 mm. Mounting: snap-in and screw; overall protection IP66 (snap-in IP54). Material: Polyamide 6.6; sealing: TPE. Colour: Grey. Dimensions (L×W×H): 61 × 61 × 79.5 mm. Item no.: 28928.6.

Commercial data

• Colour: Grey
• Country of origin: DE
• Customs number: 39259020
• GTIN (EAN): 4044211254902
• Packaging type: plastic bag
• Packaging unit: 5
• Product description: Cable Entry
• Quantity unit: PC
• Unit of weight: G
• Weight per piece (including packaging): 36.56 g
• Weight per piece (not including packaging): 34.8 g

Technical data
Dimensions

• Height: 79.5 mm
• Installation height: 59.5 mm
• Length: 61 mm
• Width: 61 mm

Connection data

• Cable diameter, min.: 18 mm
• Cable diameter, max.: 37 mm

Further technical data

• Degree of protection: IP66
• Degree of protection for screw mounting: IP66
• Degree of protection for snap-in mounting: IP54
• Min wall thickness: 1 mm
• Wall thickness with lock nut mounting, max.: 11 mm
• Wall thickness with snap-in mounting, max.: 2.5 mm
• Mounting type: Snap-on and screw-on
• Number of wires: 1
• Shape of wall cutout: round
• Torque for the locknut: 7 Nm
• Type of cables: without plug

Materials

• Material: Polyamide 6.6
• Sealing material: TPE
• Flammability class UL 94: V-0
• Halogen-free: ✓
• Silicone-free: ✓
• Working temperature, min.: -40 °C
• Working temperature, max.: 80 °C

Environment / Compliance

• REACH Conform: ✓
• REACH Reference date: 2026-02-04
• EU-POP Conform: ✓
• PROP 65 Conform: ✓
• RoHS Conform: ✓
• TSCA Conform: ✓
• REACH Candidate Substance Note: not applicable

Technical specifications

• Item no.: 28928.6
• Model / designation: KES-R M50/K
• GTIN (EAN): 4044211254902
• Mounting: Snap-in and screw
• Cable diameter range: 18 - 37 mm
• Degree of protection (overall): IP66 (snap-in IP54)
• Material: Polyamide 6.6, sealing: TPE
• UL 94: V-0
• Dimensions (L x W x H): 61 mm x 61 mm x 79.5 mm
• Weight per piece (incl. packaging): 36.56 g
• Packaging unit: 5 PC
