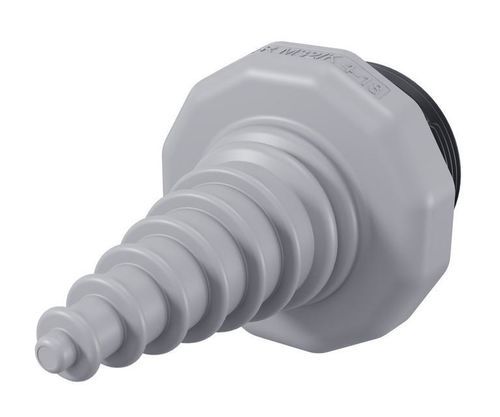

IP54 cable entry plate KES-R M32/K 4-18 GR

IP66UL94 V-0for cables

Product description
Round cable entry for non-assembled cables. Thread/size: M32. Cable diameter range: 4–18 mm. Mounting: snap-in and screw (locknut). Protection: IP66 (screw mounting), IP54 (snap-in). Material: polyamide 6.6 with TPE seal. Colour: Grey.

Commercial data
GTIN (EAN): 4044211254889
Article number: 28926.6
Customs number: 39259020
Country of origin: DE
Packaging type: plastic bag
Packaging unit: 5 PC
Weight per piece (incl. packaging): 18.42 g
Weight per piece (excl. packaging): 17.6 g

Technical data
Dimensions
Height: 73.5 mm
Installation height: 53.5 mm
Length: 43 mm
Width: 43 mm

Connection data
Cable diameter, min.: 4 mm
Cable diameter, max.: 18 mm
Number of cores: 1
Type of cables: without plug

Further technical data
Mounting type: snap-on and screw-on (locknut possible)
Shape of wall cutout: round
Torque for the locknut: 3 Nm
Min wall thickness: 1 mm
Wall thickness with snap-in mounting, max.: 2.5 mm
Wall thickness with locknut mounting, max.: 11 mm

Materials
Material (body): Polyamide 6.6
Sealing material: TPE
Flammability class UL 94: V-0
Halogen-free: ✓
Silicone-free: ✓
Working temperature range: -40 °C to 80 °C

Environment
REACH conform: ✓ (reference date: 2026-02-04)
RoHS conform: ✓
EU-POP conform: ✓
PROP 65 conform: ✓
TSCA conform: ✓
REACH Candidate Substance Note: ✗

Characteristics / technical specifications

• Series: KES-R
• Model: KES-R M32/K 4-18 GR
• Thread/size: M32
• Cable diameter range: 4–18 mm
• Mounting: snap-in and screw (locknut)
• Protection class: IP66 (screw mounting), IP54 (snap-in)
• Material: Polyamide 6.6; seal: TPE
• Temperature range: -40 °C to 80 °C
• Weight per piece (excl. packaging): 17.6 g
• Packaging unit: 5 PC
• GTIN (EAN): 4044211254889
• Recommended torque for locknut: 3 Nm
